China Top Brand Xm1003 Milling Width 1m Road Milling Machine

Product Description

Product Description
XM1003 road milling machine is a high-performance 1m-wide milling machine mainly used for the digging and renovation of asphalt concrete pavements in highways, downtown roads, airports, cargo yards, and parking lots. * This machine is powered by Shangchai 162kW electronic injection engine is applied to achieve higher power reserve than domestic like products. With higher working power, this engine can be used to effectively handle the working conditions with harder material and higher milling depth. * Engine complies with European III /American III /China III emissions standards, green construction, reduces environmental pollution. With the fuel consumption at 36.7L/h under rated power, this engine features lower fuel consumption and better operation economy. * The full-hydraulic four-wheel drive traveling system is applied to provide powerful traction force. * The 45m/min working speed is higher than the like products. Three working speeds are provided to achieve more accurate matching between working speed and working load. Product Parameters

Item		Unit	XM1003
Milling drum	Milling drum Milling width	mm	1000
	Milling depth	mm	180
	Tool spacing	mm	18
	Number of tools		82
	Rotor diameter with tool	mm	700
Engine	Model		SC9DK220G3
	Cooling method Water cooling		Water cooling
	Number of cylinders		6
	Rated power/speed	kW/rpm	162/2200
	Displacement	L	8.8
	Rated power consumption	L	36.7
	Comprehensive fuel consumption	L	12.3
	Emission Standard		National 3
	Electrical system	V	24
Box capacity	Box capacity Fuel tank	L	350
	Hydraulic oil tank	L	130
	Water tank	L	800
Driving performance	Driving performance Maximum operating speed	m/min	40
	Maximum speed	km/h	8
	Theoretical climbing ability	%	50
	Ground clearance	mm	180
Tire	Tire Tire Form Solid Rubber Tire		Rubber Tire
	Front tire size	mm	645×300
	Rear tire size	mm	645×300
Milling material conveying	Milling material conveyor Belt width	mm	400
	Theoretical feeding capacity	m3/h	84
Transport size	Shipping Size Host Size (L×W×H)	mm	4690×2500×3500
	Host size (right leg swings into the frame) (L×W×H)	mm	4690×1950×3500
	Folding conveyor size	mm	8050×1070×980
Machine weight	Machine Quality Work	kg	15600
	Front axle load (under working quality)	kg	6700
	Rear axle load (under working quality)	kg	8900

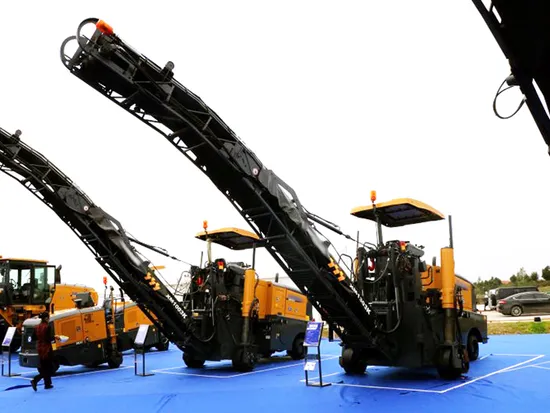

Detailed Photos
