Bleaching Earth Oil Filter Vertical Pressure Leaf Filter

Product Description

Bleaching earth oil filter vertical pressure leaf filter
Brief introduction of leaf filter
Leaf filter/Diesel filter, also known as plate sealed filter, It is an efficient, precise clarification and filtration equipment with closed operation, It is suitable for salad oil, crude oil, oil, resin, food, pharmaceutical, polyether, water treatment and other industries .
The unique product design, small size, high filtration efficiency, transparency and fineness filtrate, no material consumption, do not consume paper, cloth or paper core, consuming only a small amount of aid, and thus a low cost filtration equipment operation, maintenance, easy to clean

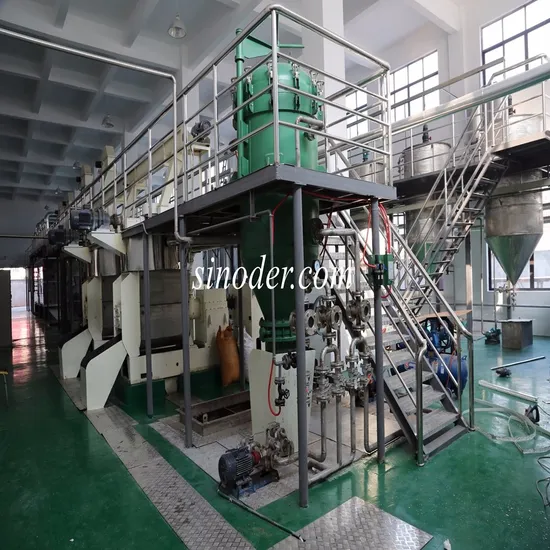

leaf filter
Working principle of leaf filter
Plate/leaf filetr consisit of mainly by the filter host and mixing captive, pumps, piping, valves, electrical control and some auxiliary equipment to form a complete filtration system. Filtration process is subject to the filter media
Filter body is composed of filter tank, filter mesh packs ,cover mechanism, automatic slag devices and other components. Miscellaneous mixed with material aid, through Pump formed in the mixing tank on a piece of filter cake layer, once you reach a stable cake layer, to help filter fine particles can provide a myriad of tiny channels, storm aid suspension matter, but also allows the clear liquid through, will not be blocked, so the actual material is filtered through a cake layer. Filter film is composed of multiple layers of stainless steel mesh, mounted on the center manifold assembly and disassembly is very convenient to clean
Application scope :
Oil industry machine pressed crude oil filter, oil filter plastic color, hydrogenated oil filters, oil filters
Food industry: sugar, glucose sugar decolorization activated carbon filtration, clarification of wine, fruit juice, soft drinks and other filters.
Chemical industry: petrochemical industry, inorganic chemicals, organic chemicals in the process of crystallization of each separation, filtration separation of various catalysts, chemical products decolorization filtering.
Environmental protection industry: rivers, lakes with water, sewage treatment station supernatant insurance purification filter, swimming pool water purification filter back.
Main technical parameter

Model	Filter area	Filte rpiece	Processing (T/h)			Working pressureMpa	WorkingtemperatureºC	VolumeL	WeightKg
			Oil	resin	Beverage
SIBL-2	2	6	0.4-0.6	1-2	1-3	≤0.5	≤150	150	300
SIBL-4	4	7	0.8-1.2	2-3	2-5			250	400
SIBL-7	7	7	1.4-2	4-6	5-7			420	600
SIBL-10	10	10	2-3	7-9	7-9			800	900
SIBL-15	15	11	3-5	12-14	11-13			1300	1300
SIBL-20	20	13	4-6	17-19	15-17			1650	1700
SIBL-25	25	13	5-7	22-24	19-21			1900	2100
SIBL-30	30	13	6-8	27-29	22-25			2300

frame filters

Packaging & Shipping
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box.
Othe Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
