Heavy Duty 630 mm Single Double Side Surface Planer for Furniture Company
Basic Info.
Model NO.
mb630
Working Depth
100-200mm
Working Width
1000-2000mm
Drivetrain
Feed Drivetrain
Enter Method
Mechanical
Spindle Speed
＜5000rpm
Certification
CE
After-sales Service
1 Year
Voltage
3 Phase 380V
Transport Package
Wooden Case
Trademark
Wardwin
Origin
China
HS Code
84659900
Production Capacity
100/Month
Packaging & Delivery
Package Size
200.00cm * 100.00cm * 150.00cm
Package Gross Weight
3000.000kg
Product Description
| Product Function |
Heavy duty 450-1300 mm width single or double side planer machine
This kind heavy duty planer is designed to planing the solid wood ,mdf ,abs ,pp and other material, it usd belt conveyor ,to reduce the defect of traditional planer,and use Luxembourg ,Ceratizit ,the best planner cutter in the world ,can use 6-8 month ,max speed 30 m/min .Easy to operate and maintenance.
| Product Specification |
| Model | Single side planer WB450 | Single side planer WB630 | Single side planer WB850 | Single side planer WB1000 |
| Max working width | 450 mm | 630 mm | 850 mm | 1000 mm |
| Max working Thickness | 90-200 mm (customized) | 110-200 mm (customized) | 110-200 mm (customized) | 110-200 mm (customized) |
| Min working Thickness | 5mm | 5 mm | 5 mm | 5mm |
| Sprial cutter spindle diameter | φ125mm | φ125mm | φ125mm | φ140-160mm |
| Cutter blade size | 30x12x1.5mm | 30x12x1.5mm | 30x12x1.5mm | 30x12x2.5mm |
| Feeding speed | 0.1-30 m/min | 0.1-30 m/min | 0.1-30 m/min | 0.1-30 m/min |
| Main motor | 5.5kw | 11kw | 11-15kw | 11-15kw |
| Feeding motor | 1.1kw | 1.5kw | 2.2-3 kw | 2.2-3 kw |
| lifting motor | 0.37kw | 0.37kw | 0.37kw | 0.37kw |
| Voltage | 3 phase 380v | 3 phase 380v | 3 phase 380v | 3 phase 380v |
| Dimension | 1600*1300*900 mm | 1800*1150*1450 mm | 1800*1200*1600 mm | 1800*1600*1500 mm |
| Weight | 1160 kg | 1360kg | 1560kg | 2100kg |

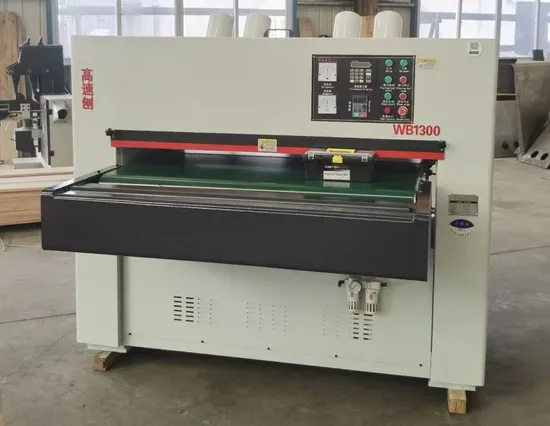

| Model | Single side planer WB1300 | Double side planer WB450-2 | Double side planer WB630-2 | Double side planer WB1300-2 |
| Max working width | 1300 mm | 450 mm | 630 mm | 1300 mm |
| Max working Thickness | 110-450 mm (customized) | 110-450 mm (customized) | 110-450 mm (customized) | 160-650 mm (customized) |
| Min working Thickness | 5mm | 5 mm | 5 mm | 5 mm |
| Sprial cutter spindle diameter | φ180mm | φ125mm | φ125mm | φ180mm |
| Cutter blade size | 30x12x2.5mm | 30x12x1.5mm | 30x12x1.5mm | 30x12x1.5mm |
| Feeding speed | 0.1-30 m/min | 0.1-30 m/min | 0.1-30 m/min | 0.1-20 m/min |
| Main motor | 22-30 kw | 7.5kw*2 | 11kw*2 | 22kw*2 |
| Feeding motor | 3-4 kw | 1.1kw*2 | 1.5kw*2 | 2.2kw*2 |
| lifting motor | 0.55 kw | 0.37kw*2 | 0.37kw*2 | 0.37kw*2 |
| Voltage | 3 phase 380v | 3 phase 380v | 3 phase 380v | 3 phase 380v |
| Dimension | 1600*1900*1300 mm | 2600*780*1700 mm | 2500*1100*1800 mm | 2900*1460*1800 mm |
| Weight | 3080kg | 1960 kg | 2068 kg | 4600 kg |
| Detail Photos |
Button type operation panel , simple operation,making it more convenient for user to operate ,with adjustable speed
The internal circuit board has neat wiring, stable workpieces,long service life ,strong universality and convenient operation
Heavy duty sprial cutter ,adopt Luxembourg ,Ceratizit
Conveyor motor with inverter ,max speed 0-30 m/min
3D Wall decoration board
3D Wall decoration board
