Horizontal Closed End Baler Plastic Baling Baler

Product Description

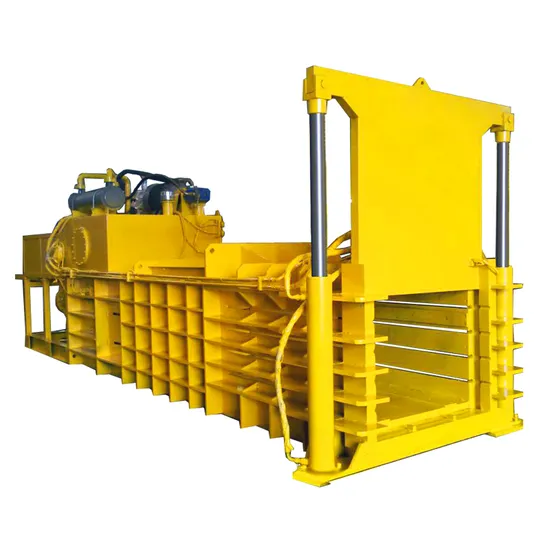

Horizontal Plastic Film Baling Baler
* It is closed type hydraulic baler with lifting open-end door, no need to shift balers timely after package, it can push bags continuously.
* It has high strength output door, hydraulic automatic open-end door, convenient operation and safety.
* It configures with PLC program and electric button control, operated simply and equipped with automatic feeding detection, can compress bale automatically.
* The baling length can be set at random, and provides bundling reminder device.
* Artificial packing, pre-install strapping design, it only thread each wire or bundling rope around bale one time to complete skein, save labor.
* Block size and voltage can be customized according to customers' reasonable requirements. Bales weight depends on different materials.
* It has three phase voltage and safety interlock device, simple operation, can connect with pipeline or conveyor line to feed material directly, improve working efficiency.
* The British imported seals, improve the service life of the cylinder.
* Oil pipe joint uses cone links without gasket, has no phenomenon of oil leak.
* Uses Taiwan imported superposition valve group.
* The motor connects with pump directly to ensure 100% concentricity and prolong the service life of the pump.
* Adopt unique concave type of multi-point cutter design to improve the cutting efficiency and prolong service life of the cutter.
* German hydraulic technology to save energy and protect environment.
* Adopt the vessel classification of welding process, to ensure the equipment more stable and reliable.

Model	Baler size L*W*H(mm)	Work pressure (KN)	Bale weight (KG)	Main power (KW)	Overall dimension L*W*H(mm)	Total Weight (KG)
BYB-150T	(adjustable)*1100*830mm	1500Kn	about 400kg-500kg	37kw+0.75kw	8472*2059*2520mm	14500kg
BYB-100T	(adjustable)*914*660mm	1000Kn	about 200kg-250kg	30kw+0.75kw	7800*1860*2360mm	10000kg
