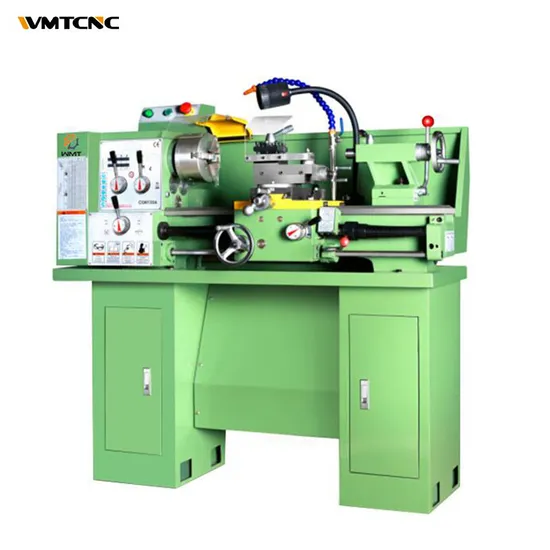

CQ6133 38mm Bore Metal Lathe Machine with CE standard
| US$1,345.00-2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CQ6133
Type
Horizontal Lathe
Processing Accessory
Steel Workpiece
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Statio Toolpost
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore
38mm
Max. Swing Over Bed
330mm
Distance Between Centers
600mm 915mm
Machine
Lathe
Clour
Customer Appoint
Voltage
110V, 220V, 380V
Payment
T/T, Paypal, LC, West Union
Transport Package
Fumigated Poly-Wood Case
Specification
CE, SGS
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
845899000
Production Capacity
200 Sets Monthly
Packaging & Delivery
Package Size
140.00cm * 80.00cm * 80.00cm
Package Gross Weight
300.000kg
Product Description
Main specification| Specification | Model CQ6133-550/750mm |
| Max. turning diameter over bed: | 330mm(12-3/5") |
| Max. swing over cross slide: | 220mm(8-11/16") |
| Max. length of work piece: | 550mm(23-3/5") / 750mm(36") |
| Width of bed | 160mm(6") |
| Spindle Taper and Bore: | MT5 / 38mm ( 1-1/2") |
| Max. lateral stroke over tool post | 160mm(6") |
| Metric pitches | 0.5-4 mm |
| Inch pitches | 9-40 T.P.I |
| Longitudinal-feed range | 0.135-1.80mm/r |
| Max. travel of tailstock sleeve | 70mm(2-3/4") |
| Tailstock sleeve taper | MT3 |
| Spindle speeds range | 60-1650r/min(50hz) |
| Motor | 1.1Kw |
| NW/GW (without stand) | 280/300Kg 320/340Kg |
| Packing size (without stand) | 133*76*72/155*76*72 cm |
| Packing size | 133*76*137/155*76*137 cm |
