Basic Info.
Usage
Innocent Treatment Animal Carcasses
Heating and Ventilation Equipment Type
Natural Ventilation
Computerized
Non-Computerized
Certification
ISO9001:2008, CE
Product Name
Animal Carcass Crushing Machine
Harmless Treatment Machine
380V 50Hz
Application Field
Animal Free-Pollution Disposal
Shaft Design
Single Shaft Crusher
Suitable Object
Pigs, Cattle, Sheep, Chickens, Ducks, etc
Whether to Support Custom
Yes
Broken Way
Squeeze The Impact
Rotor Diameter*Length
Φ800*2000mm
Equipment Rotate Speed
12r/Min.
Transport Package
Wooden Cases
Packaging & Delivery
Package Size
390.00cm * 207.00cm * 475.00cm
Package Gross Weight
3000.000kg
Product Description
Zhite Shredder for Animal Carcass/Hazardous Waste/Waste Household Appliances/Medical Waste/Building Template/Furniture
Overview
The animal carcass crusher is single-axis crusher, the single-axis crusher is mainly composed of sealed silo, crushing chamber, crushing knife shaft, power mechanism, frame, discharge bin, observation and access port and other components, single-axis crusher is widely used in dead pigs, dead cattle, dead chickens, rabbits and other sick animals crushing reduction treatment. The top of the crusher is equipped with automatic sealing silo, which can realize the closed crushing of sick and dead animals, and prevent the spilling of blood and odor; The bottom of the silo is a crushing chamber, and the tearing and cutting of the knife shaft will break the bodies of various sick and dead animals to about 50mm. The lower part of the crushing chamber is set up an outlet silo, and the outlet silo is connected with the discharge spiral or the feed pump, and the crushed materials are transported to the subsequent equipment for further harmless treatment.
Technical Parameters
Model | Rotor Diameter*Length(mm) | Inlet size(mm) | Capacity(t/h) | Max.Feed Weight(kg) | Power(kw) | Rotor speed(r/min.) | Overall size(mm) |
ZT-DP-0410 | Φ400*1000 | 1720*920 | 1-3 | ≤50 | 15 | 25 | 6500*1350*2600 |
ZT-DP-0412 | Φ400*1200 | 1920*920 | 3-5 | ≤100 | 22 | 22 | 8000*1400*2800 |
ZT-DP-0615 | Φ600*1500 | 2380*1520 | 5-8 | ≤150 | 37 | 20 | 9300*1500*2950 |
ZT-DP-0618 | Φ600*1800 | 2680*1520 | 8-10 | ≤200 | 45 | 18 | 3450*1500*2950 |
ZT-DP-0818 | Φ800*1800 | 2680*1720 | 10-20 | ≤300 | 55 | 15 | 3900*2070*4750 |
ZT-DP-0820 | Φ800*2000 | 2880*1720 | 20-25 | ≤350 | 75 | 12 | 3900*2070*4750 |
All equipment produced by our company can customize according to customer's requirements.
Features
1.Unique crushing method, moving knife, fixed knife durable;
2.For animal skin more tough materials, using special tools, sharp and wear-resistant;
3.Special device is designed to prevent leather from winding the blade;
4.High power motor drive, high efficiency, low energy consumption;
5.Can be equipped with lifting device, direct automatic feeding, saving labor;
6.Can realize the whole PLC control, simple operation, low maintenance cost.
7.Self-protection measures. If the broken hard object exceeds the power requirement, turn it over twice and then break it again. If the hard object is not broken after two turns, the device will give an alarm.

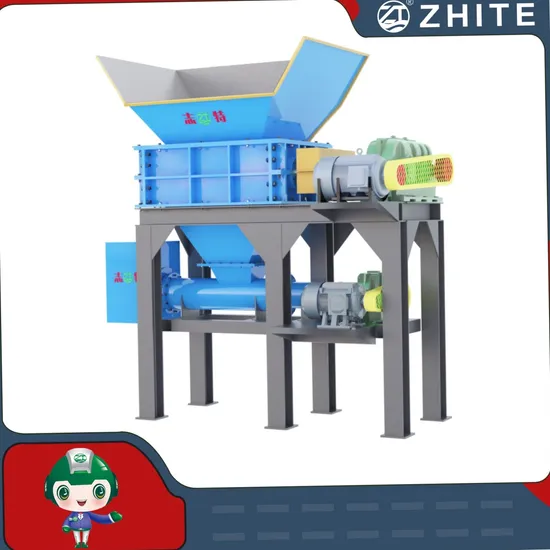

Product pictures
Other Products
Customer Visit
FAQ
1.Are you a factory or trading company?
We are a company specializing in the production of various kinds of shredding machine, crusher, excrement and urine processor for the equipment manufacturers.
2. Samples are available?
Yes, the sample for your test quality.
3. The product test before shipping?
Yes, all the equipment before delivery to commissioning, there is no problem of equipment to the factory.
4. After sale service?
For most of the machines, the quality is guaranteed for one year since the date of shipment except wearing parts, we supply the on-line service for all the machines, and also supply the spare parts all the time with cost price, for some complicated machine or plant, we can send our engineer overseas too.
5. How do you guarantee I can receive the goods that ordered after make the payment?
Please be rest assured that you will receive the goods in time, we are a legally established company supervised by the government, and is registered in customs of China and China Chamber of International Commerce. Besides, we are the golden member of MADE IN China. COM and has been checked by the third party as the real and legal company.
6. How to make the payment?
Normally, when the order value is below USD10, 000, we accept the payment by T/T or Western Union or Cash, L/C will be accepted when the order value is over USD10, 000. For T/T, the customer can choose 100% in advance or 30% in advance, and pay the 70% balance before shipment.
7. I want to know more about your company and your products, how?
We will sent you a catalugue as well as a questionaire which covers your requiement. Your kindly reply about filling the questionaire will be greatly appreciated.
8.Where are you? Can we go to China and visit your factory?
Yes, of course. We are in Weifang, China. Welcome to our factory.
Factory pictures
WEIFANG ZHITE ENVIRONMENTAL PROTECTION TECHNOLOGY CO.,LTD.
Thank you for your attention to our products, if you want to know more information, please feel free to contact us, we sincerely provide you with the most satisfactory service!
