Cheap Electric Power Fire Truck with Water Sprinkler Function, Street Cleaning Fire Fighting Machine

Product Description

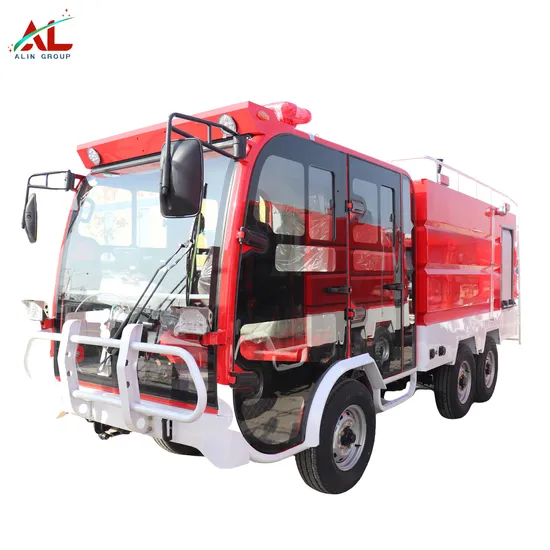

Product Description AL-X1 Electric Fire Truck
Electric fire trucks represent a groundbreaking advancement in firefighting technology, offering numerous benefits over traditional diesel-powered vehicles. These innovative vehicles are equipped with powerful electric motors that provide efficient and eco-friendly operation, reducing carbon emissions and minimizing environmental impact.

No.	Model Name		AL-X1 Fire Truck
Vehicle parameters
1	Outer dimensions	5200×1500×2200 mm
	Maximum total mass	7500 kg
	Liquid carrying capacity	3500 kg
	Maximum speed	40 km/h
	Fire pump rated flow	600L/min 0.55MPa
	Fire monitor rated flow rate	650L/min 0.55MPa
	Fire cannon range	≥ 45m
	Approach angle/departure angle	23°/21°
	Minimum ground clearance	190 mm
	Braking distance	7 m
	Battery life	80-100 km(the full load)
	Battery mileage	Battery range of 100 kilometers
	Car mounted intelligent charger, waterproof and dust-proof design, with high temperature warning and automatic power-off function
Main parameters of the chassis
2	Model	XF02-1/HW09-1
	Rated power of motor	7.5 kw *2
	Engine peak power	15 kW *2
	Engine type	175-7.5-7*2
	Motor type and power	Communication asynchronous, 15 kw
	Driving form	6×4 rear independent dual drive
	Braking system	Front and rear drum hydraulic brakes, dual-circuit hydraulic brakes, parking brake device
	Braking distance	< 30m
	Tires	The front and rear wheels are steel rim tubeless tires
	Wheelbase	2050 mm /850 mm
	Maximum allowable total weight	7500 kg
	Axle load mass	Front Axle:2500 kg, Rear Axle:5000 kg
	Minimum turning radius	≤ 6m
	Transmission form	Single-stage automatic transmission*2
	Charging voltage	220V
	Charging time	6-8 hours
	Climbing slope	21%
	Transmission speed ratio	18:1
	Battery form	Lithium Ion Battery
	Battery capacity	72V /200Ah
	Chassis and frame	High strength steel frame, steel bumper, chassis number tapping on the frame.
	The chassis meets the requirements of advancement, reliability, stability.
Passenger compartment
3	Structure	Flat head, four doors, double row
	Number of drivers / passengers	4
	Driver position	Left-drive, integrated seat backrest adjustable with headrest
	Rearview mirror	Wide-view rearview mirror on the left and right outside
	Instrument board equipped with fireman control panel and warning light control box. 1. Alarm system included warning lights and megaphones; 2. Reversing image; 3. Electric steering and brake booster; 4. Flash 5. Radio power cord pile head 6. The cab is equipped with positioning device, and the positioning technology of WGS84 (international standard) coordinate system.

Interior of truck display:
One of the key advantages of electric fire trucks is their quiet operation, allowing firefighters to communicate more effectively during emergency situations. Additionally, electric vehicles have lower maintenance costs and longer lifespans compared to their diesel counterparts, making them a cost-effective choice for fire departments.
Equipped with advanced battery technology, electric fire trucks offer rapid acceleration and impressive range, ensuring swift response times to emergencies. They can be easily charged at designated stations or through mobile charging units, ensuring continuous readiness for firefighting missions.
Moreover, electric fire trucks are equipped with state-of-the-art firefighting equipment, including high-pressure water pumps, hoses, and rescue tools, enabling firefighters to efficiently combat fires and perform rescue operations.
Overall, electric fire trucks represent a significant leap forward in firefighting technology, providing enhanced performance, sustainability, and reliability to fire departments worldwide.
Packing & shipments:
Customer Visit:Company Introduction:
We are Electric Vehicle manufacturer group of Electric cars, electric motorcycles, bikes in China. We have automatic metal parts stamping line, automatic electrophoresis coating line, automatic spray painting line and assembling line etc. Our daily production capacity is 1000 units of cars and tricycles. More than 85% spare parts are made by our own factories. Below are our products list for your reference:
1. Low speed Electric car / closed tricycle ( Price USD 2300-5000/ unit ).
2. High speed electric car ( Price USD 8000- 20000/unit)
3. Electric bikes, motorcycle tricycles ( Price USD 200 - 1000/ unit)
3. Other electric vehicles: patrol car, sightseeing car, classic car, golf cart and so on. 4. Electric vehicle factory design, production equipment supply and installation, technical service etc. 5. We are also export agent of top brand cars: BYD, Chevrolet, Leapmotor, NETA etc. Our company are qualified by ISO9001. Our machines have passed CE / EEC certification. We have professional engineers team, advanced testing equipment and training department. Our technical team will offer professional design and after-sale service according to customer's requirement.
