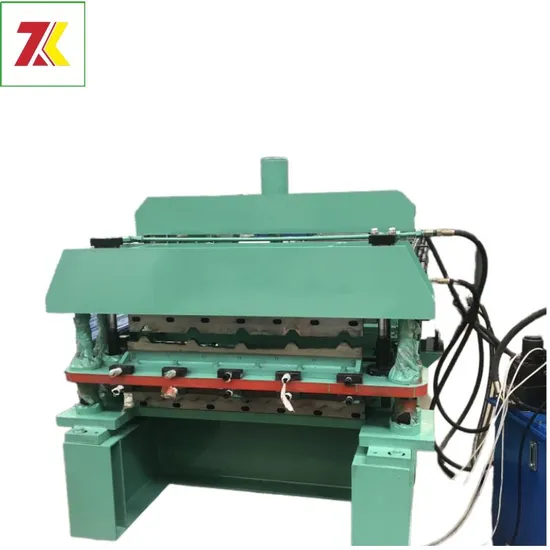

a Combination of Glazed Tile and Corrugated Roll Forming Machine

Product Description

Product Description
Glazed Roofing Sheet Machine
The production line uses galvanized steel plate or different colors of color steel plate or aluminum plate as raw materials. The products are used to build the exterior roof board and wall board as well as the interior decoration board or ceiling, etc., so as to increase the beauty and durability of the roof or wall. The production line of glazed tile press tile machine has no production length limitation, it can set multiple groups of different data on the computer controller according to the construction requirements. After one key "confirm", the equipment will automatically produce finished products of different lengths according to the data set by the computer. The finished product produced by the production line of glazed tile press tile is smooth, smooth and without scratches, which is convenient for construction and installation.

product parameters

NO.	ITEM	SPECIFICATION
1	Suitable material	Color steel sheet ,galvanized steel sheet, aluminium sheet
2	Width of material	1200mm or as you required
6	Thickness of material	0.3-0.8mm or as your needs
2	Working speed	1-4m/min(glazed) 10-16m/min(850)
3	Main motor power	5.5kw with cycloidal reducer
4	Hydraulic station power	5.5kw
5	Electrical control system	PLC control system
7	Shaft diameter	80mm
8	Roller station	14rows
10	Dimension	7500x1500x1910mm
11	Weight	About 5 T
12	Voltage	380V 3phase 50HZ or as the customer's requirements
13	Material of roller	High grade 45# forged steel plated with hard chrome plating
14	Material of cutting	Cr12 mould steel with quenched treatment
15	Working time	Can be 24 hours
16	Workers	1-2 only

Working Flow

Detailed Photos

Company Profile
Company Profile
Cangzhou Zhongke Cold roll Forming Machine Factory is a professional manufacturer and exporter engaged in the design, development and production of cold roll forming machines and mechanical materials. The company has cooperated with a number of manufacturers and associates. Located in northwest Zhangocated, Cangzhou, it has a long history and is home of machinery. All products are in line with international quality standards, well received by different markets around the world. With 17 years of working experience, we have our own factory and rich experience in customized products. We can provide quality products and best service.
Packaging & Shipping
Our Advantages
Why choose Zhongke ?
SAMPLE DISPLAY
FACTORY SENCE
RELATED PRODUCT

FAQ

Q1:How to play order? A1:Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing
running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
