1 Dds2203L Single Phase Two Wire LCD Kwh Meter

Product Description

Single Phase Two Wire Register Kwh Meter
PRODUCT INFORMATION
Zhejiang tainihan electrical technology co., ltd DDS2203 Series single phase electronic energy meter are adopt stable performance, low power consumption of industrial components, use the process carefully design and manufacture.This product can be installed either in indoor or outdoor meter box, and used under the temperature of -20ºC--+55ºC and relative humidity below 85%.
DDS2203L SPECIFICATIONS

1	Type	DDS2203L
2	Display	LCD 6Digits+1Decimal Or 5Digits+2Decimal
3	Accuracy	Class 1
4	Rated Voltage (Un)	220V Or 240V
5	Base Current (Ib)	5A, 10A,15A or other
6	Max Current (Imax)	20A, 40A, 60A or other
7	Frequency (Hz)	50Hz Or 60Hz (±5%)
8	Starting Current (mA)	0.4% Ib
9	Power Consumption of Current	≤1W 10VA Per Phase
10	IP Class	IP51
11	AC Voltage Withstand	2KV for 1 Minute
12	Impulse Output Rate (Imp/kWh)	1600, 800 Or Other
13	Operating Temperature	-20ºC To +55ºC
14	Storing Temperature	-40ºC To +70ºC
15	Operating Humidity	≤75%
16	Storing Humidity	≤95%
17	Communication	N/A
18	LCD Display Backlight	N/A
19	Battery	N/A

DDS2203L FUNCTION IN DISPLAY AND MONITORING
LCD Display 6Digits+1Decimal,
Rev led indicator,
Impulse led indicator

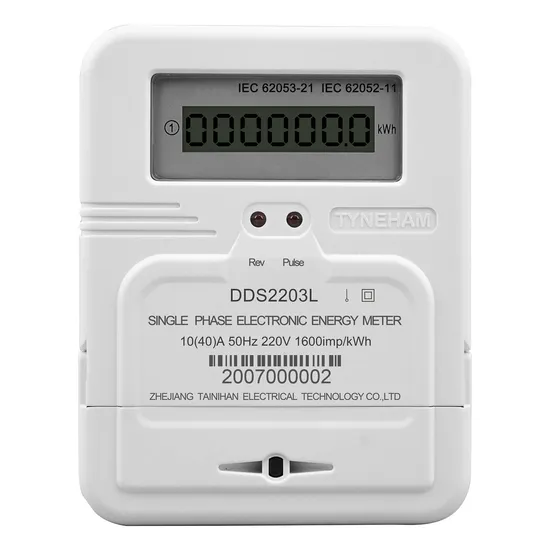

DDS2203L APPEARANCE
DDS2203L DIMENSIONS
DDS2203L WIRING DIAGRAM
