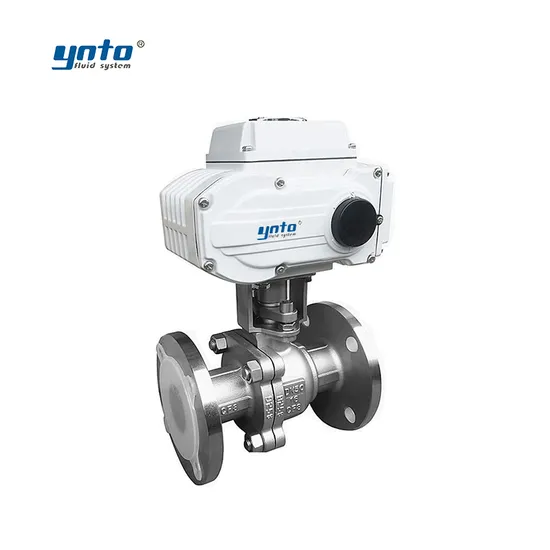

Ynto Electric Actuator Ball Valve for Water Flow Control

Product Description

Product Showcase Electrically Actuated The Yuan Tong electric valve actuator adopts an upper-mounted structure, which reduces the number of connecting bolts on the valve
body under high pressure and large diameter conditions, enhancing the reliability of the valve and overcoming the impact of system
self-weight on the normal operation of the valve. The Yuan Tong electric valve actuator is widely used as a medium diversion or
flow direction switching device in pipelines such as coal chemical industry, petrochemical industry, rubber, papermaking, and
pharmaceuticals.

Electric actuator
Power Supply:	DC24VDC12AC120VAC240VAC220Vcustom
Standard time:	15S	30S
Run time:	5S/10S/15S
Rotation angle range:	0-90 ° adjustable
Overall weight:	3.2KG
Protection grade:	IP65/IP67
Installation:	360 ° installation at any angle
Ambient temperature:	-20~60

Why Choose Us? Certifications Product packaging Exhibition FAQ 1. Which voltage of the electric actuator?
DC24V, AC24V, AC110V, AC220V AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear, the soonest actuation time can be reach 1 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
(1)ON/OFF type ON/OFF type is fully open and fully closed.
(2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
(3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system. 4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off. But it can go to the multiturn electric actuator
model with the extra electrical storage device along, which acheieve the valves can be automatic reset(normally closed) while
power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator. The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator? IP65, IP67, IP68,Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override. You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time. It can be working for 99 hours continually without getting heating.
