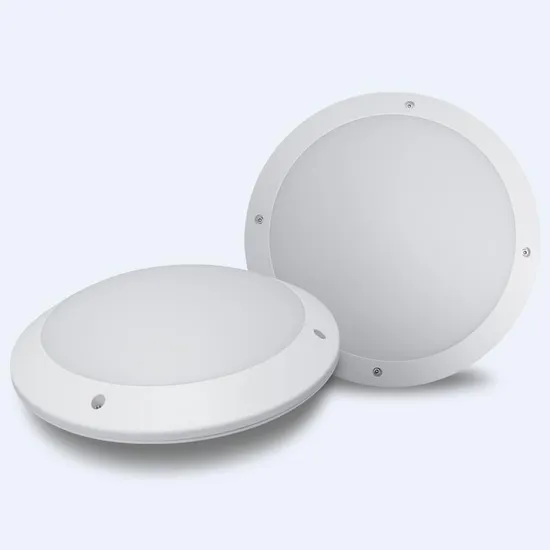

Bulkhead Lighting Round Ceiling Light Waterproof Ceiling Light IP66 Ik10 3CCT with Sensor and Emergency Kitting Light

Product Description

Bulkhead lighting round ceiling light waterproof ceiling light IP66 IK10 3CCT with sensor and Emergency kitting lightNew desgin IP66 IK10 CCT Changing Watts ajustable 10W / 15W / 22W LED ceiling light with Sensor Emergency kitting with CB CE certificate
Features
°Energy efficient LED
°IP66 weatherproof rating with insect resistant seal
°IK10 vandal proof rating
°Supplied with eyelid trim option
°Tri-CCT selectable
MECHANICAL
°Adjustability Fixed
°BodyMaterial Polycarbonate
°Diffuser Material Polycarbonate
°Fitting Colour Black
°IK Rating IK10
°Installation Type Wall or Ceiling
°IP Rating IP66
ELECTRICAL
°Electrical Rating Class II
°Input Current 0.07 A
°Input Frequency 50 Hz
°Input voltage 230Vac
°Switch Type Inline
°System Max Wattage 12 W 15W 22W
°Working Temp Range -20 to 45 °C
LAMP
°CCT Configuration TRI-CCT
°CRI >80
°System Efficiency 100 lm/W
LED LIFETIME
°LED Lifetime >54000 hrs
COLOUR TEMPERATURE
°Warm White (3000K K) 1125 lm
°Cool White (4000K K) 1170 lm
°DayLight (5700K K) 1150 lm
°Warm White (3000K (Eyelid) K) 670 lm
°Cool White (4000K (Eyelid) K) 700 lm
°DayLight (5700K (Eyelid) K) 685 lm
Lighting detailes pictures:
1. Lighting body: PC or ABS material body with high impact resistance, non-deformable structure for installations in environments with vibration.
2. Lighting cover: PC or PS safety msterial with 1.8mm on the body by means of metal clips, protects it against knocks or water flood.
3. PCB: White aluminum base, 0.45mm thick.
4. Applications: Indoor & outdoor areas with high IP requirement, food industry chemical plants, heavy mining industries environments with the presence of cuting oil & other aggressive substances, oil industries, offshore industry, petrochemical industries, swimming pool areas, dusty humid and corrosive environments, washing houses, breweries, under canopy areas, pharmaceutical factories, loading bays, food industries, packing areas, garages, cellars and industrial complex, ware house, under-bridge, tunnel, ship, bathe center, packing lot, railway platforms, lobbies, refrigeratory and city environment luminance field ect.
5. Operating voltage: Input 220V ~ 240V, 50Hz ~ 60Hz. Output 12V-24V 50Hz ~ 60Hz
6. Type of lamps: LED SMD2835
7. Wattage: 12w 15w 22w
8. Operating temperature: -20C ~ 45C
9. IP rating: IP66, outstanding stability of water tight gasket, waterproof, explosion proof, dustproof.
10. Electrical equipment: High quality LED driver and SMD2835 Chips
11. Certificate: CE, CB, RoHS, SAA
