Oblique Arm-Type Screen Printing Machine with UV Tunnel Dryer

Product Description

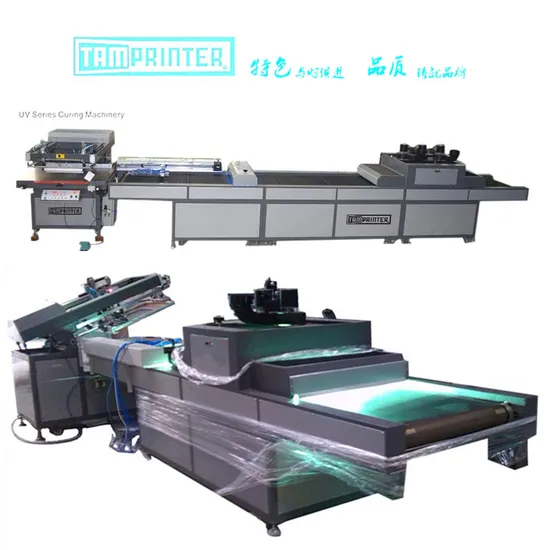

TM-Z1 Fully Automatic clamshell Screen Printing Machine with UV Dryer
TMP-70100 Oblique Arm Flat Screen Printer
TM-UV750-L UV drying machine with robot arm
Video click here:
http://youtu.be/3bpxVNTvWF0
http://tamprinter.en.made-in-china.com
Specification

Type	TMP-70100
HS CODE	8443192290
Worktable size(mm)	800*1100
Max print area(mm)	700*1000
Max plate size(mm)	1000*1300
Min plate size(mm)	550*650
Thickness of substrate (mm)	0-20,0-50
Printing speed(pcs/h)	500-1200
Working air pressure(Mpa)	0.3-0.5
Gas consumption(0.6Mpa)(L/pcs)	13/pcs
power(kw)	2.3
Work table minimum relative height (mm)	820
Overall Dimension(l×w×h)(CM)	160*125*130//176*138*145
weight (kg)	480
Rated voltage(V/Hz)	220V50Hz

Model Parameter	TM-UV750-L
Conveyorbelt width(mm)	730
Effective range (mm)	750
Product max height (mm)	40
Conveyor speed (m)	2~20
Power(P/V/Hz)	3/380/50
UV lamp(KW/2pcs)	5.6
Conveyor power(W)	90
Total power(KW)	12.1
Dimension(L*W*H)	4050*1200*1350
Plywood	4.2X1.2X1.6m 8.1CBM
Weight(kg)	300
Type	robot arm 1500
Working air pressure(Mpa)	0.3-0.5
Gas consumption(0.6Mpa)(L/pcs)	0.5
power(kw)	0.75
Rated voltage(V/Hz)	AC220v/50Hz
Take the feed rate (pcs/h)	1000
Dimension(L*W*H)mm	L1500* W 700* H 200
weight(kg)	400
all above plants /2 plywood /930kg/ 12.062m³

Robot arm
Features:
1 . Internal regulator circuit
2. 12N Big torque
3. With acceleration and deceleration control procedures, and durable machine running smoothly
4. South Korea imported linear bearings using SF, action fast and stable and low noise
5. Adjustable clamp the material position with switch control box, easy to operate
6. All optical signal isolation, interference, stability
7. Precision photoelectric switches, the accuracy of 2mm

The main components of mechanical nozzle configuration
Stepper motor --------------- BSHB31115-3
Stepper drives --------------- BUCOM-BK3722M
Master chip ----------------- ATMEL-ATmega-8
Bearing --------------------- Korea SF SBR20LUU
Timing belts -------------------Alexander 2943L20
Relays ------------------- OMRON LY2N
Air switch----------------- ZHENGTAIDZ47-60
Key switch----------------- JINHONGK16-311GL
Close to the switch -----------Autonics Pr18-5dp
Photoelectric switch ----------OMRON EE-SX-671R
Pneumatic clamps ----------------- TIANXINGJHD1615
Solenoid valve ----------------SYMC STG2521-08

NOS.1 Product Code: 8443192290
Description: Other flat screens
Reporting elements:
1 Name: screen printing units
2 Purposes: printed patterns on flat products, text
3 Principle: When printing squeegee squeeze through, so that the ink is transferred through the mesh part of the graphic to the substrate to form the same with the original graphic
4 feeding mode: Manual
5 pieces Size: 700 * 1000mm
6 brands: TAMPRINTER
7 Model:. TMP-70100
NOS.2 Product Code: 8419399030
Product Description: Industrial furnaces and ovens with other resistance
Reporting elements:
1 Name: UV light curing machine
2 Uses: dried product
3 heating principle: heating and drying the product by UV lamp
4 Brand: TAMPRINTER
5 Model:. TM-UV750-L
6 whether the humidity function: no
NOS.3 Product Code: 8428399000
Product Description: Mechanical suction mouth rewinding machine
Reporting elements:
1 Name: Robot
2 Purposes: printed material received
3 Brands: TAMPRINTER
Please contact us if you have any interest with our products
