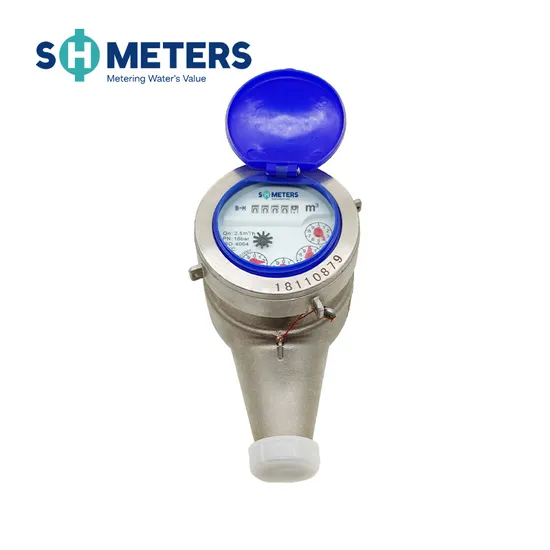

1/2inch~2inch Class B Screw Type Stainless Steel Multi Jet Water Meter

Product Description

1/2inch~2inch Class B Screw Type Stainless Steel Multi Jet Water Meter The multi jet water meter is a sophisticated utility measurement device designed for accurate and efficient tracking of water consumption. It employs multiple water jets to measure the flow rate, ensuring precise readings even at low flow rates. This technology is commonly used in residential, commercial, and industrial settings to monitor water usage, enabling effective resource management, billing, and leak detection. Multi-jet water meters are known for their reliability, durability, and suitability for a wide range of applications, making them a vital tool in water distribution systems. Product Description
Application
Measuring the volume of cold (hot) water passing through the pipeline.Water meter is used for home,commercial,municipality,pipeline
Features
·Magnetic Drive, Lower transmission resistance.
·Magnetic shield, for external magnetic field protection.
·Sealed dry register ensures long time clear reading.
·External regulating device.
Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
·With high accuracy
·For horizontal use
·Accessories include Strainer, Rotary piston, Connection Widget, connector fitting
Maximum Permissible Error
·In the lower zone from qmin inclusive up to but excluding qt is ±5%.
·In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.
Pulse Output Option

Magnet Position	Liter/Pulse
*0.0001	1
*0.001	10
*0.01	100
*0.1	1000
