Battery Livestock Machinery Layer Chicken Hens Cage for Poultry Farm

Product Description

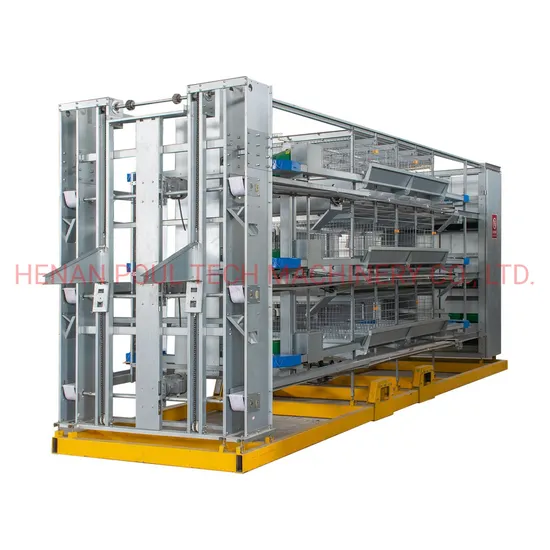

H FRAME LAYER CAGE SYSTEM
The H frame layer cage system construction and the sections of cages are produced of galvanized sheet and hot dippedgalvanized wires bearing ISO 9001 Quality Certificate. The surface galvanize cover of these materials, are equal to high standards. It is becoming the most popular and good choices to the poultry farms all over the world.
A.THE MAIN CONSTRUCTION OF THE CAGE SYSTEM
Availability to adjust the required level of feeds thanks to the feeding system consisting of feed cart(trolley hopper) and dispenser apparatus that are automatic and made of galvanized sheet and dyed sheet. All feeding system are connected with the feed silo(with feed elevator and silo weighing system) and operated automatic.

Tiers	3	4	5	6	7	8
Height(mm)	2714	3414	4114	5300	6000	6700

The cage system is designed to be strong against earth movements. Main construction of the cage system consists of the legs, which are located in every 84 cm lengthwise, and the wide based connection units with adjustable bolts.
Watering system is consisting of PVC material square shape pipe, nipple drinkers, which is made of plastic and stainless steel in red color, in each section and the bottom plastic drop catcher in V shape.and all nipple drinkers will be fitted with the squarepipes already and packed by carton and plastic bags outside for protection before shipment.
Sections side walls are produced of galvanized wire and galvanized steel sheets which will be fitted together in factory before shipment.Thus, more light and more productive ventilation are ensured,and installation workload reduced and all equipment standard can be kept perfectly because of less movement of the section sides.
Eggs can reach easily to the egg belt owing to well bevel base wires. In this way, cracked and dirtiness can be reduced at minimum level.
B- DRINKING SYSTEM
There are 2-3 nipple drinkers for each two cage sections on the PVC pipes which are located between two cage sections lengthwise the cage row. the "V" shape leakage gutter underneath the water pipes, holds the water drops and prevent the drops to reach the manure belt, therefore a drier manure is obtained.
A water regulator is located on each tier and each row of the cage, It supply the water from the water line to the pipes, through reservoirs with the proper pressure. The filters and the medicator(DOSATRON of France) to clean the water and keep health of all chickens.
C.THE AUTOMATIC FEEDING SYSTEM
It is the feeding system with feed carts. Against the inconveniences of chain feeding system cause decomposition feed,overweight to cage construction and low yield; in feeding system with feed carts, thanks to feed adjustment apparatus which is designed specially, feed is distributed hygienically, homogeneous, mixed and equally.
In this system, feed is distributed automatically to the feed carts from the feed silos by the spiral augers located in a pipe with 90-150 mm diameter. The Augers materials made in South Africa, also the best quality worldwide.
Feed carts are moved by steel cables and 0,75-1.50 HP(according to the chicken house length and hopper) electric gear motors over the rails that are located on the top of the cages.
Feed troughs are specially designed in order to distribute the feed in equal quantity to reach tier and to prevent the feeds to be scattered outside the feed trough. Thus, waste of feed is in minimum level and fresh is presented to layers. Also that system avoid to select the feed when the layers feeding. And this gives that has exhausted content of all feed.
D- AUTOMATIC EGG COLLECTION SYSTEM
Automatic egg collection unit made of galvanized sheet and apparatus produced by our advanced own production machines, the egg bands and lift engine powers are 0.75 -1.50 HP.
The egg bands made of import cloth and the joint components made of plastic sheets. The egg belts, which are located lengthwise the cage row, towed by the egg collection heads. These jute egg belts and the egg-holding wire meshes are designed in order to prevent the eggs crash. The egg bands are anti static and not hold dust, and there is one egg brush in each end of the cage rows, therefore, eggs are clean and they are suitable for food safety.
Special brushes are placed end of all lines for cleaning egg belts.
EGG COLLECTION CONVEYOR
It contains lift system which reach each tiers by moving up and down.the body off egg conveyor made of stainless steel sheet, consisting of chain and rod, which are also stainless steel wires, and lift system bearing the reducer.the egg conveyor engine power is 0,75 HP.
With the elevator lifting system, the eggs are collected from each tier and transported to the requested place and distance. In this way, the eggs can collect with minimum energy.
As system can be turned 90 + 90 degree with bends, egg cracking is prevented without any transmission and system can be adapted easily for egg collection and grading machines.
The automatic egg collection conveyor shall be delivered to the egg collection center to be constructed by the purchaser.Such egg collection center is estimated to take part at a distance of 8-10 mt. at most from the last building.
E- MANURE REMOVAL SYSTEM
Manure is cleaned and discharged by the Polypropylene (PP) manure belts of 1.10 mm thickness. These PP belts are located underneath every tier and row of the cages and towed by drive reducer engines to clean the manure in a flawless way.This strong and robust construction is operated without problem even in very long hen houses. Rollers and the scrapers located on each tier and row spills the manure to the discharging manure conveyor at the end of the hen-house and the manure is removed from the hen-house by this discharging manure conveyor.
A cover has been placed at back of the manure belts for avoid splashing and not to make dirty hen house and transfer the manure to the conveyor as dandy.
The manure belt is made of white PP product which made in Italy, the best quality we can get all over the world now. The belt system is consisting of front cap rollers stretching and internal scrapping off apparatus as well as the rear scrapping off rollers, pressing balls, external scrapping off apparatus, conveyor drive systems and the electrical reducer engines.
MANURE CONVEYORS
Horizontal manure conveyor : The rubber band in thickness of 6 mm including the cord cloth running on galvanized pipes at galvanized construction and the front rear rollers, reducer engine
.
Vertical manure conveyor : The rubber band in thickness of 6 mm including the cord cloth running on galvanized pipes at galvanized construction and the front rear rollers, reducer engine.
The motor for the manure conveyor is covered by the galvanized steel sheets in case of the strong sunshine, rain, water, etc.and the power can be changed as different conveyor length.
Q1:How many types of layer chicken cage?
A1: We have two types,A type and H type .
A type have two models,3tiers and 4 tiers.
H type have 6 models including 3 tiers,4 tiers,5tiers,6tiers,8 tiers.

Q2:How much per set cage?
A2:Different model,price is different.In addition,there are other complement equipments.
Need know how many birds you want to rear,then we can give you a specific price list
with house size.

Q3:How long is the warrenty?
A3:1 year.

Q4:Who is in charge of install ?
A4:Our company will send two engineers to your country to guide installation
and provide training.

Q5:How to contact you?
A5:Below is my contact ways.Or send inquiry details in the below,click"Send"now
