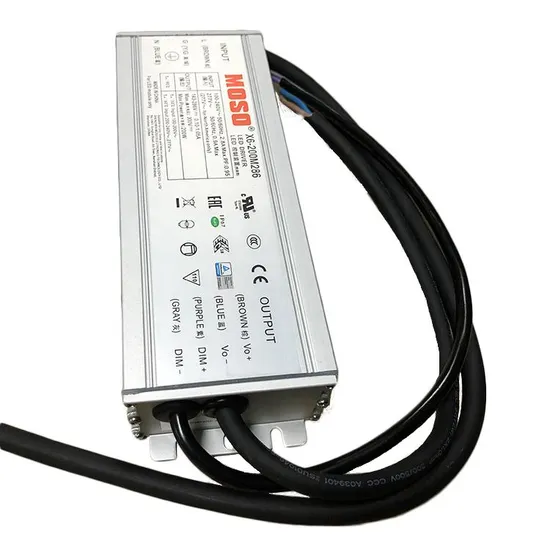

LED Driver 200 Watts Waterproof IP67 Power Supply Transformer Adapter 100V-265V AC to 12V

LED Driver 200 Watts Waterproof IP67 Power Supply Transformer Adapter 100V-265V AC to 12V

US$12.63-30.69 50 Pieces (MOQ)

Basic Info.

Model NO.
MOSO-X6-200w
Driving Method
LED Constant Current
Circuit Structure
Electronic Step-down Transformer
Certification
CE, RoHS
Power Supply Mode
Constant Current Source
Modulation System
PWM
In-Out
Lifting Pressure Type
Power Supply Voltage
AC85-265
Pack Sealing Size
SMD
Brand
Lebekan
Products Name
Moso Driver
Input Voltage(V)
AC90~305VAC
Output Power
200W
Model Number
Moso X6-200
Frequency
50/60Hz
Input Voltage
130-150lm/W
Output Voltage
28-41
Working Temp
-20 ~ +60
Type
Constant Voltage
Transport Package
Neutral Packaging
Specification
20-41
Trademark
LEBAKAN
Origin
China
HS Code
9405409000
Production Capacity
100000 Per Month

Packaging & Delivery

Package Size
65.00cm * 40.00cm * 35.00cm
Package Gross Weight
18.000kg

Product Description

LED Driver 200 Watts Waterproof IP67 Power Supply Transformer Adapter 100V-265V AC to 12V Product Description
Model Number
(1)
Max Output Power (W) Output Voltage
Adjustable Range (V)
Output Voltage Range (Vdc) Full-Power
Current
Range
(A)
Default
Output
Current
(A)
Input
Voltage
Range
Typical
Efficiency
Power
Factor
X6-200Y041 200 20-41 30-41 4.88-6.67 5.56 90~305Vac 91% 0.97
X6-200Y041 200 20-41 30-41 4.88-6.67 5.56 90~305Vac 91% 0.97
X6-200Y062 200 38-62 40-62 3.23-5.00 4.90 90~305Vac 92% 0.97
X6-200Y062 200 38-62 40-62 3.23-5.00 4.90 90~305Vac 92% 0.97
X6-200Y191 200 96-191 133-191 1.05-1.50 1.05 90~305Vac 93% 0.97
X6-200Y191 200 96-191 133-191 1.05-1.50 1.05 90~305Vac 93% 0.97
X6-200Y286 200 143-286 191-286 0.70-1.05 0.70 90~305Vac 93% 0.97
X6-200Y286 200 143-286 191-286 0.70-1.05 0.70 90~305Vac 93% 0.97
Product Features
.Universal input voltage / Full range: 90~305Vac;
.Constant power design, output current programming adjustable;
.(M types) offline programmable, (V types) output current adjustable by built-in potentiometer;
.3-in-1 dimmable: 0~10Vdc, PWM, Timer dimming. Dim-to-off;
.Constant lumen output
.Output and Dimming Signal Isolating
.Surge protection: 5KV line-line, 10KV line-earth;
.Protections: SCP, OVP, OTP;
.IP67 design for indoor and outdoor applications;
.Suitable for dry / damp / wet locations;
.5 years warranty.
Application
.Suitable for LED roadway lighting, plant lighting,
industrial lighting, landscape lighting, etc.
DESCRIPTION
The X6-150W series is 150W outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 90~305Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. X6 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
