3m 4m 6m 300kg Small Scissor Man Lifter Work Platform
Basic Info.
Model NO.
MMS-5.0DC
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Max.Platform Height
3m-4.8m
Lifting Capacity
300kg
Platform Size
1170X600mm
Max.Drive Speed(Km/H) (Platform Stowed
4km/H
Driving Motor
2*24V/0.4kw
Lifting Motor
24V/1.2kw
Charger
24V/10A
Overall Length
1340mm
Overall Width
760mm
Overall Height with Guardrail
1880-2040mm
Lifting/Falling Speed
20-30s
Battery
2*12V/ 80ah
Color
Customized
Delivery
by Sea
MOQ
1
Transport Package
Wrapped by Paper Bag and Film
Specification
3m 3.9m 4.8m
Trademark
UNW
Origin
China
HS Code
8428909090
Production Capacity
99999PCS/Year
Packaging & Delivery
Package Size
134.00cm * 76.00cm * 188.00cm
Package Gross Weight
360.000kg
Product Description

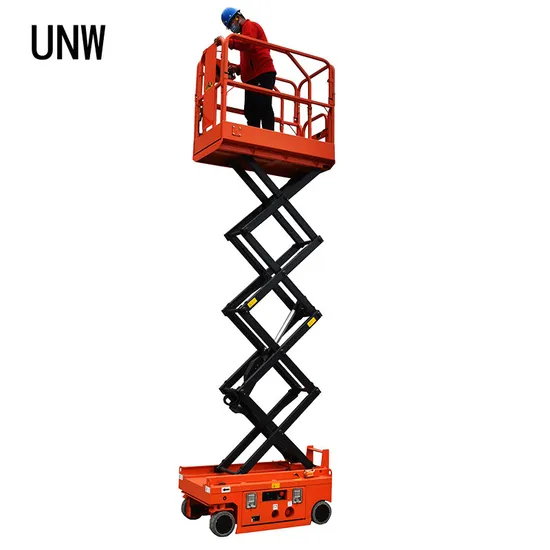

Hydraulic Steering Self Propelled Mini Scissor LiftProduct Description
UNW Brand mini scissor lift is specially designed for indoor outdoor aerial works with lower height and narrow space. With comapct sizes, light weight and strengthened structure, it is portable and easy to operate.
Mini Hydraulic Steering Scissor Lift is moved and lifted by operating the control panels on the platform and on the body. Mini Hydraulic scissor lifts is only equipped with a set of hydraulic pump station system to control the movement, lifting and lowering of the machine, it is the most intelligent one of the mobile scissor lift, the product is equipped with a variety of tools.Now, mini scissor lift is widely used in installation service companies, decoration companies, theaters, galleries, and other places with lower height.
Product Parameters
| Model No. | MSS-H5.0DC | MSS-H5.9DC | MSS-H6.8DC |
| Max. Platform Height | 3m(10ft) | 3.9m(13ft) | 4.8m(16ft) |
| Max. Working Height | 5m(16ft) | 5.9m(19ft) | 6.8m(22ft) |
| Lift Rated Capacity | 300kg | 300kg | 300kg |
| Ground Clearance | 60mm | 60mm | 60mm |
| Platform Size | 1170*600mm | 1170*600mm | 1170*600mm |
| Wheelbase | 1010mm | 1010mm | 1010mm |
| Min. Turning Radius | 1400mm | 1400mm | 1400mm |
| Max. Drive Speed (Stowed) | 4 Km/h | 4 Km/h | 4 Km/h |
| Max. Drive Speed (Raised) | 0.8 Km/h | 0.8 Km/h | 0.8 Km/h |
| Lifting/Falling Speed | 20/30sec | 20/30sec | 20/30sec |
| Max. Travel Grade | 10-15 % | 10-15 % | 10-15 % |
| Drive Motors | 2×24V/0.4KW | 2×24V/0.4KW | 2×24V/0.4KW |
| Lifting Motor | 24V/1.2KW | 24V/1.2KW | 24V/1.2KW |
| Battery | 2×12V/ 80Ah | 2×12V/ 80Ah | 2×12V/ 80Ah |
| Charger | 24V/10A | 24V/10A | 24V/10A |
| Max Allowable Working Angle | 2° | 2° | 2° |
| Overall Length | 1340mm | 1340mm | 1340mm |
| Overall Width | 760mm | 760mm | 760mm |
| Overall Height | 1880mm | 1980mm | 2040mm |
| Overall Net Weight | 650kg | 760kg | 930kg |
Detailed Photos
Real Order&Custom Color
Company Profile
After Sales Service
1. Spare parts provided freely within quality warranty.
2. Providing user's manual.
3. Liftetime techinique support.
4. 24 hours telephone and Internet service FAQ
1. How can customer buy parts once it break down?
The scissor lift table adopt most of the common parts of hardware. You can buy the parts in your local hardware market or forklift parts shop.
2. How can customer repair the scissor lift table?
One of the great advantage of the equipment is with very low failure rate. Even it breaks down, we can guide to repair it by video and repair instruction.
3. How long is the quality guarantee?
One year quality guarantee. If it breask down within one year, we can send the parts free of charge to you.
Certificate: CE ROHS SGS ISO etc.
