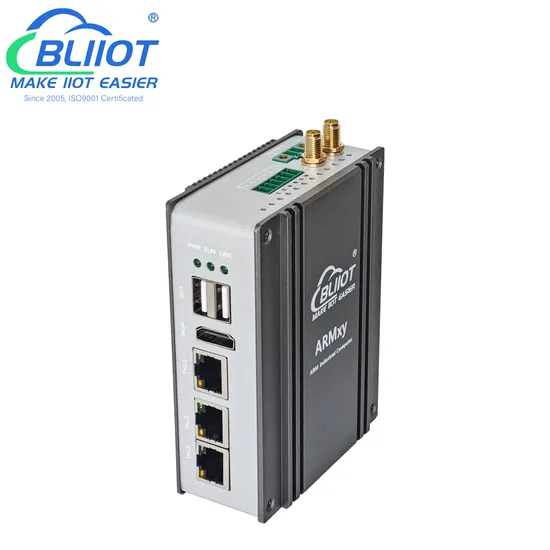

Industrial Rockchip RK3568J Quad Core A55 4G+32G 1TOPS ARM AI Edge Gateway

Product Description

Industrial Rockchip RK3568J Quad Core A55 4G+32G 1TOPS ARM AI Edge Gateway Product Description The ARMxy BL410 series is a versatile industrial ARM controller designed for flexible I/O configuration. It is based on the Rockchip RK3568J/RK3568B2 processor, featuring aquad-core ARM Cortex-A55 architecture with clock speed up to 1.8GHz/2.0GHz. The device is equipped with 8/16/32GB eMMC storage and various combinations of 1/2/4GB LPDDR4X RAM. Additionally, it includes a built-in 1TOPS computing power Neural Processing Unit (NPU) for supporting deep learning tasks.The BL410 series ARM embedded computer offers a rich array of interfaces including 1 x 1000Mhz Ethernet port, 2 x optional 100Mhz Ethernet ports, 2 x USB 2.0 ports, 1 x optional HDMI 2.0a port, 1 x optional X series IO board, 2 x optional Y series IO boards. These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control. The BL410 also supports hardware decoding of 1080P@60fps videos.Additionally, it features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.The BL410 series ARM embedded computers support Linux-4.19.232, Linux-RT-4.19.232 kernels, Debian-10.13, Android 13, Docker containers, Node-RED, and Qt-5.15.2 for graphical interface development tools. In addition, BL410 is compatible with BLIoTLink industrial protocol conversion software for data collection and transformation, and can seamlessintegration with various mainstream IoT cloud platforms and industrial SCADA software. Users can leverage the BLRAT for remote access and maintenance of the BL410 embedded computer. Additionally, with support for Node-Red, users can rapidly develop IoT applications on the BL410.The BL410 series ARM embedded computer has undergone rigorous electrical performance design and high-low temperature testing to ensure stability and reliability. It is designed for DIN35 rail mounting, making it suitable for various industrial application environments.This embedded computer is widely used in industrial IoT, photovoltaic power generation and energy storage systems, automation control, and transportation and rail applications.
Product Parameters ARMxy BL410 Model List

Model	ETH	USB	HDMI	X board IO Slot	Y board IO Slot	Dimension
BL410	1x100Mhz	2	X	1x6PIN	X	42x83x110mm
BL410A	1x100Mhz	2	X	1x20PIN	X	42x83x110mm
BL410B	1x100Mhz	2	X	1x20PIN	2	48x83x110mm
BL410C	1x100Mhz	2	X	1x10PIN	X	42x83x110mm
BL411	2x100Mhz	2	X	1x6PIN	X	42x83x110mm
BL411A	2x100Mhz	2	X	1x20PIN	X	42x83x110mm
BL411B	2x100Mhz	2	X	1x20PIN	2	48x83x110mm
BL412	3x100Mhz	2	1	1x6PIN	X	42x83x110mm
BL412A	3x100Mhz	2	1	1x20PIN	X	42x83x110mm
BL412B	3x100Mhz	2	1	1x20PIN	2	48x83x110mm

ARMxy BL410 SOM Model List

Model	MCU	Clock Speed	Kernel	NPU	eMMC	DDR4	Temperature
SOM410	RK3568J	1.8GHz	4 x A55	1TOPS	8GByte	1GByte	-40~85°C
SOM411	RK3568J	1.8GHz	4 x A55	1TOPS	16GByte	2GByte	-40~85°C
SOM412	RK3568J	1.8GHz	4 x A55	1TOPS	32GByte	4GByte	-40~85°C
SOM413	RK3568B2	2.0GHz	4 x A55	1TOPS	4GByte	1GByte	0~70°C
SOM414	RK3568B2	2.0GHz	4 x A55	1TOPS	8GByte	2GByte	0~70°C
SOM415	RK3568B2	2.0GHz	4 x A55	1TOPS	8GByte	4GByte	0~70°C
