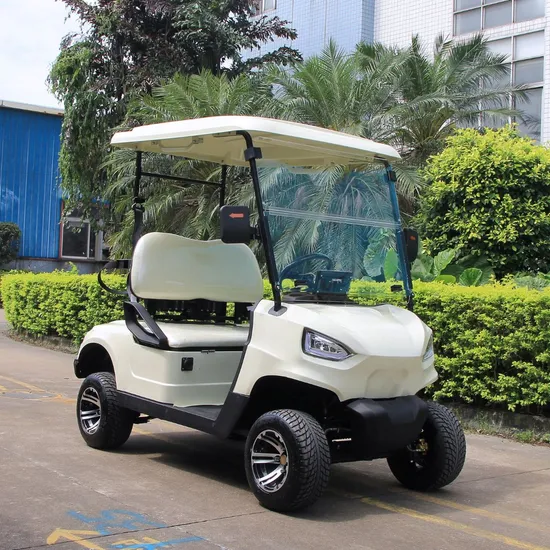

2 Seater Battery Operated Lead Acid or Lithium Powered Golf Cart Sightseeing Bus

Product Description

Product Parameters

Model NO.:ZH-A2				Configure system:48V AC system
Electric system	Controller	AC intelligent controller
	Battery	Maintain-free battery 8V/pc,6pc 150AH(3 hour rate) Install lithium batteries according to customer needs
	Motor	AC asynchronous 48V/5KW
	Charging	Intelligent charging 48V/25A(natural switching),charging time<10hours(discharging rate 80%)
	DC converters	High power non-isolated DC-DC 48V/12V-300W
Bodywork configuration	Front gear and windowshied wiper	PMMA
	Ceiling	Automotive engineering material ABS blister molding
	Seat	Ergonomic seat,leather fabric
	Floor	Patterned aluminum plate/anti-aging rubber non-slip floor
	Bodywork	The front cover, seat barrel and body cover parts are injection molded with special PP materials for automobiles; high-quality steel profiles for ceiling columns
	Rearview mirror	One manual exterior rearview mirror on the left and right
	Light and warning light	Front combination lights (front lights, turn signals), combined rear tail lights (brake lights, position lights, turn lights)Snail horn, reversing buzzer
	Instrument desk	Plastic molding instrument panel, LCD electric vehicle combination instrument, electric lock switch, single arm combination switch, gear switch; water cup holder; dual USB power supply.
	Steering system	Two-way rack and pinion steering system,automatic backlash compensation function
	Sharking system	Rear hub brake + compound pedal parking
	Front suspension system	McPherson independent suspension; coil spring + cylinder hydraulic shock absorber
	Rear suspension system	Integral rear axle,coil spring shock absorber +cylinder hydraulic shock absorber+rear stabilizer bar
	Tire	Special golf cart tire 205/50-10 wheel diameter 452mm
Technical parameters	Length*Width*Height	2425×1130×1835mm	Vehicle height(with battery)		500kg
	Rate personal(people)	2 people	Cargo size		N/A
	Maximum traveling speed	≤28km/h	Cargo load		N/A
	Driving range (km)	80-100km(f;at road)	Sharking stability		1600mm
	Energy consumption	8kwh	Minimum ground clearance		110mm
	Maximum grade	30%	Axle distance		1680mm
	Slope stand	30%	Wheel base		Front 920mm/Rear966mm
	Minimum radius	3.3m	Sharking distance		<6m

Product Description Equipped with a spacious seating capacity for two individuals, this golf cart provides a comfortable and enjoyable ride for both the driver and passenger.
Its compact size allows for easy maneuverability, making it suitable for both indoor and outdoor use.
Certifications After Sales Service quality guarantee
1.Our company guarantees that the supplied vehicles are brand new, unused original qualified products, and ensure that the provided vehicles have good performance during their service life under normal maintenance conditions of correct installation and normal use.
2.Our company is committed to the quality standards of the supplied vehicles in accordance with the relevant national quality and technical standards and relevant laws and regulations and provisions of the implementation of the requirements, and not lower than the original manufacturer's quality assurance regulations and relevant supply standards for the supply of counterfeit and shoddy products.
after-sales service
1.Promise to provide permanent maintenance services, vehicle warranty for one year, after the warranty period to provide paid services.
2.Regular return visit maintenance: Telephone return visit every 3 months, timely understanding of the buyer's opinions and suggestions, in order to promote the company's after-sales service work to further improve.

After-sales process
1.The customer provides product information, unit information and contact information by telephone or email message, and describes the cause of the problem to the manufacturer.
2.After receiving the information, the manufacturer will try to deal with it as soon as possible.
3.Provide a solution to the problem described by the customer until the customer is satisfied.
Company Profile
Workshop pictures

FAQ Q1 Are you factory or trading company?
A:We are factory in Guizhou province,China,with more than 10 years of manufacturing experience
Q2 Do you support customized products?
A:We offer a wide range of customized products, which can be customized according to your requirements
Q3 How long is your production cycle?
A:Production cycle 30 days in peak season, 10-15 days in off-season
Q4 How about the trading term and payment term?
A:We can discuss this individually
