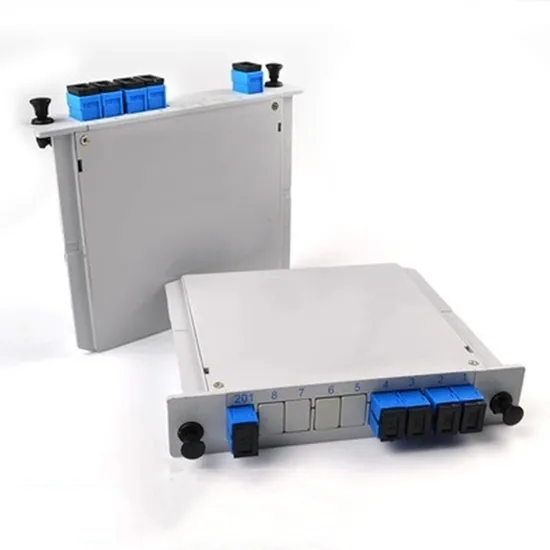

Certified Manufacturer FTTH Cassette Type Fiber Optic PLC Splitter 1*4 Sc/Upc 09mm with Excellent Uniformity & Reliability
Basic Info.
Model NO.
MRCPLCASU1040010
Number of Cores
Single-Core
Ferrule Endface
Upc
Shape
Rectangular
Fabrication Process
Injection Molding
Application
Fiber Distribution Frame, Network Equipment, Fiber Module
Light Source TYPE
Laser
Connector Type
Sc-Upc
Brand
Myray
Package Size
130mm X 100mm X 25mm
Fiber Diameter
0.9mm
Package Type
Cassette Type
Input End
1 Way
Output End
4 Way
Splitter Type
Lgx Type / Cassette Type
Fiber Type
G657A1
Fiber Colour
White / Coloured
Wide Operating Wavelength
1260 - 1650 Nm
Used in
FTTH / FTTX
Warranty
2 Years
Temperature
-35ºC - +85ºC
From
Ningbo,China
Product Capacity
360000piese/Year
Cassette
ABS
Transport Package
Zipped Plastic Bag Plus Carton
Specification
1X4, Cassette Type
Trademark
MYRAYFTTH
Origin
China
HS Code
85367000
Production Capacity
360000pieces/Year
Product Description
NINGBO MYRAY NETWORK EQUIPMENT CO.,LTD. was founded in 2006. The company is located in the east of Guanhaiwei Town Industrial Park of Cixi City, which is the hometown of hardware in China. It is close to 329 National Road and G15 Shenhai Expressway. The transportation is convenient and fast.The company has passed the ISO 9001; 2008 international quality system certification, with first-class production equipment and testing equipment, and complete testing methods, good quality service so that our products won the trust of our customers.
The company is mainly engaged in the production and sale of optical fiber connector fittings and various optical fiber adapters and their peripheral supporting products. It can also carry out the development and manufacture of various plastic molds according to customer requirements, and adjust the appropriate materials and color matching.
The company specializes in the development of new connector fittings with hundreds of products, and has obtained LC and other connector patents. It has a professional research and development, mold production team, and equipped with a complete mold manufacturing workshop and SKD mirror spark machine, wire cutting, precision grinder, high-speed milling, high-speed perforation and other molds plus. The factory implements the complete processing of the mould.
The company has a self-built production plant with 20000, the main production equipment has 600 hardware lathes, 50 Haitian injection molding machine.
| Mechanical Specification 1xN | |||||||||||
| LGX Cassette Type PLC Splitter | |||||||||||
| Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |||||
| LGX Cassette Type | Body Material | PP/ABS/PC | |||||||||
| Dimension(LxWxH/mm) | 130 x 100 x 25 | 130 x 100 x 50 | 130 x 100 x 70 | 130 x 100 x 154 | |||||||
| Input fiber type | 900um loose Hytrel tube | ||||||||||
| Output fiber type | 901um loose Hytrel tube | ||||||||||
| Input Length | 0.5M(+50mm / -0mm)or Customized | ||||||||||
| Output Length | 0.5M(+50mm / -0mm)or Customized | ||||||||||
| Connector (Input) | SC/UPC,SC/APC,LC/UPC,LC/APC,FC/UPC,FC/APC | ||||||||||
| Connector (Output) | SC/UPC,SC/APC,LC/UPC,LC/APC,FC/UPC,FC/APC | ||||||||||
| Optical Specification 1xN | |||||||||||
| 1 x N PLC Splitter | |||||||||||
| Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |||||
| Fiber Type | G.657A | ||||||||||
| Operating Wavelength(mm) | 1260 to 1650 nm | ||||||||||
| Insertion Loss(dB) | Max(with connector) | 4 | 7.2 | 10.5 | 13.8 | 16.8 | 20.5 | ||||
| Uniformity Loss(dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 1.8 | ||||
| Polariation Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 | ||||
| Return Loss(dB) | UPC≥50 APC≥60 | ||||||||||
| Operating Temperature(ºC) | :-40ºC - +85ºC | ||||||||||
