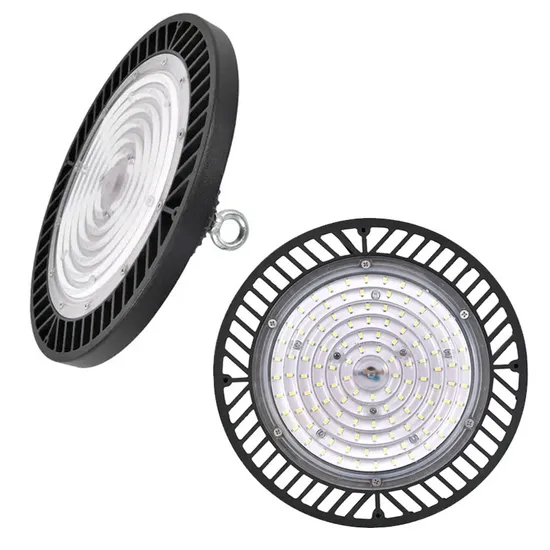

UFO LED Industrial Light with Annular Optical Lens, Phili Power Supply

Product Description

B Series UFO LED Industrial Light Parameter: with Annular Optical Lens
Model No.: Lamp Size LEDs Qty. Net Weight Lumen Outer Packing Size

UFO-B-100W	Φ250*90(mm)	120pcs SMD 3030	2 kg	13000 lm	260*125*265 mm
UFO-B-150W	Φ300*100(mm)	180pcs SMD 3030	3 kg	19500 lm	310*125*315 mm
UFO-B-200W	Φ350*120(mm)	240pcs SMD 3030	4 kg	26000 lm	360*135*365 mm

B Series UFO Industrial LED Light Features1. Beam Angle : 120 degrees.2. Aluminum die casting heat sinks is good for heat dissipation.3. Green ,energy saving,long and relialble life of 50,000 hours.4. No RF interference, no IR / UV radiation,no mercury pollution.
5. Streamline exterior design,beautiful appearance.
6. Special circuit design,each LED work separately,avoiding the single broken LED influence problem. Anti-UV Annular PC Optical Lens High Light Transmittance, Reducing Glasr Whle optimizing lighting performance. Thick Die-Cast Aluminum Heatsink Hollow Air Convection Heat Dissipation Design, Good Heat Dissipation Isolated Driver Both Isolated and Non-Isolated Power Supply Available, High PF & Waterproof.
LED Industrial Light Explode Diagram:
LED Industrial Light Dimension Sketch:
LED Industrial Light Thermal Management Test:
Industrial LED Light Application:
LED Industrial Lighting Distribution:
LED Industrial Light Lampshade (Reflector) Option: Angle: 90 degree, can improve the lighting effect, suitable for higher space use.
LED Industrial Light Installaton Methods:
LED Industrial Light Install Bracket for Optional: Adjustable Angle 180 degree.
LED Industrial Light Optical Lens Options:
