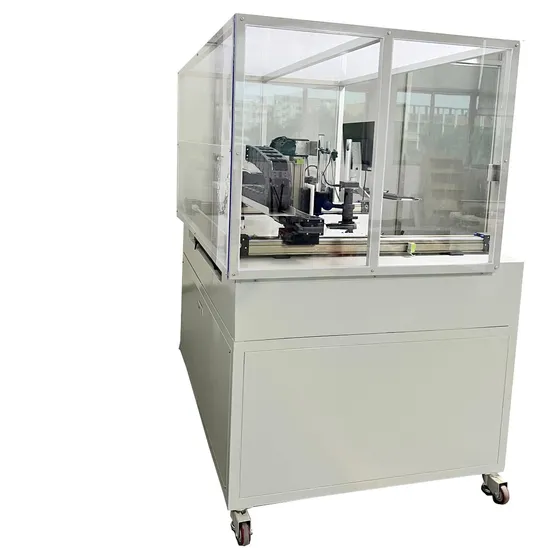

Screen Inspection Machine for SMT PCB Screen Plate Checking
| US$15,200.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
SBT-JC1009SA
Driven Type
Mechanical
Certification
ISO9001, ISO, CE
Automatic Grade
Semi-Automatic
Condition
NEW
After-Sales Service Provided
Spare Parts and Technical Supporting
Type
Scanner
Steel Screen
736X736mm
Weight
260kg
Light Source
LED Lamp
Guide Rail
Tw Hiwin
Microscope
20 Million Pixels (Can Be Customized)
Display
21 Inch HD Display
Transport Package
Wooden Case
Specification
1500*1200*1450MM
Trademark
sUBIt
Origin
China
HS Code
9031809090
Production Capacity
80/Year
Packaging & Delivery
Package Size
155.00cm * 125.00cm * 160.00cm
Package Gross Weight
350.000kg
Product Description
Product DescriptionSteel Screen / Silkscreen / Film Detection with Microscope Table
Application range: widely apply for detection products such as steel screen,silk screen, film base sheet as well as SMT,PCB,PRINTING,SOLAR CELL ,LED smart phone touch screen panel and cover board industry, equipped with electronic microscope device, that help to looking directly to product and find non-good parts and defects so as to solve problems promptly.
Machine parameter:
Machine type No:SBT-JC1009SA
| Main Frame Material | Stainless steel with vanish |
| Light source on the bottom | Tailored LED energy save light source |
| External Dimension | L1500 x W1200 x H1450MM |
| Max.Stainless mesh | 736 x 736MM |
| Guide Rail | Tailored 900 x 900 guide rail module |
| Glass | 12MM thickness tempered glass,Milky white diffuser. |
| Tension Meter | LANDTEK |
| Effective stroke | X: 900MM;Y:900MM |
| Move Speed | 380MM/S(can be adjusted) |
| Position Precision | 0.05MM |
| Control system:PLC touch screen(can write move track program and save it) Rocking bar(By manual or automatic) | |
| Microscope Light Magnification | 200times |
| Pixel | Twenty Million pixel |
| Display | 21"1080P HD display |
| Computer | WIN7 system,Intel processor,1TB Hard dish |
| Visual measurement software: it can detect the defects of steel mesh in real time and take photos for storage, and measure the size and distance of mesh holes with measuring tools. | |
PACKING&SHIPPING
Exporting Packing:
Aftersale service:
1)Machine warranty period: 12 month, factory would supply spare parts on free in warranty time.
2) Technical supporting in lift time. Any problems happened, factory would response in 8hours via Email, instant message or phone directly.
