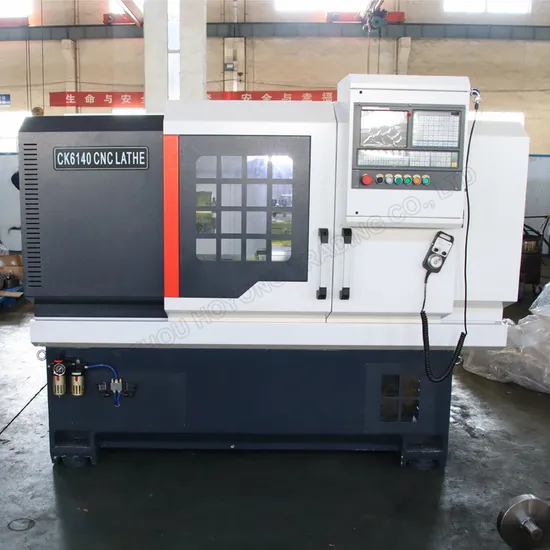

Flat Bed CNC Lathe Machine Ck6140 Ck6150 Ck6160 Ck6180 Ck61100
| US$10,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6140 CK6150 Ck6160 CK6180 CK61100
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
400mm, 460mm, 500mm
Swing Over Cross Slide
180mm, 250mm
Max. Turning Length
750/1000/1500mm
Spindel Bore
80mm
Spindle Speed
100-2000rpm
Spindel Nose
A2-6
Motor Power
5.5kw
Transport Package
Plywood Case
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581100
Production Capacity
30
Product Description
CNC LATHE FEATURES:
STAND AND BED use full casting, good regidity
Bed way 400mm width
Eject splash in middle of bed
3 support in spindle
Box way, linear way for optional
Multi-Numerical control system for optional
SPECIFICATONS:
| MODEL | CK6140 |
| Swing over bed | 500mm |
| Swing over cross slide | 195mm |
| Length of work piece | 600mm |
| Distance between center | 650mm |
| Z-travel | 900mm |
| X-travel | 240mm |
| Spindle bore Taper of spindle bore Spindle nose Range of spindle speed | 52mm (MT6#) D1-6 200-2200r/min |
| Z rapid speed(Box Way) Z rapid speed(Linear Way) | 8m/min 12m/min |
| Z cutting feed(Box Way) Z cutting feed(Linear Way) | 1~4000mm/min 1~5000mm/min |
| X rapid speed(Box Way) X rapid speed(Linear Way) | 3m/min 10m/min |
| X cutting feed(Box Way) X cutting feed(Linear Way) | 1~2500mm/min 1~3000mm/min |
| Power of main motor | 5.5kw |
| Max. spindle torque | 70Nm |
| Repositioning accuracy(Box Way) Repositioning accuracy(Linear Way) | ±0.006mm ±0.004mm |
| Min. input | 0.001mm |
| Nos. of tool position | 4 |
| Max tool shrank | 20×20mm |
| Tailstock diameter | 60mm |
| Tailstock taper | (MT4#) |
| Tailstock travel | 160mm |
| Power supply | 11kva |
| Overall size(L×W×H) | 210×120×200cm |
| Packing size(L×W×H) | 220×132×222cm |
| Net weight/Gross weight | 1500kg/1600kg |
| STANDARD ACCESSORIES |
| Wrenches Reduction sleeve Center Short -Taper Three-Jaw self-Centring Chucks |
| STANDARD PART |
| Frequency conversion spindle motor 5.5kw Max. spindle torque 70Nm Power supply 11kVA 2-Axis box way 4 position vertical electric turret Auto lubrication , coolant system Simple cover GSK980TA numerical control system |
| OPTIONAL ACCESSORIES |
| Frequency conversion spindle motor 7.5kW Max. spindle torque 95Nm Power supply 13.5kVA 16 Step headstock gear graduation 45~1800r / min X axis box way ,Z axis Hiwin linear guide way 2- Axis Hiwin linear guide Way 6 position horizontal electric turret Gang tool Full cover FANUC Oi-mate-TD , Siemens802C , KND100Ti ,HNC-21TD numerical control system Power Chuck |
