Tfa8s C-Axis Servo Control CNC Lathe Milling Machine Inclined Bed

Product Description

Product Description

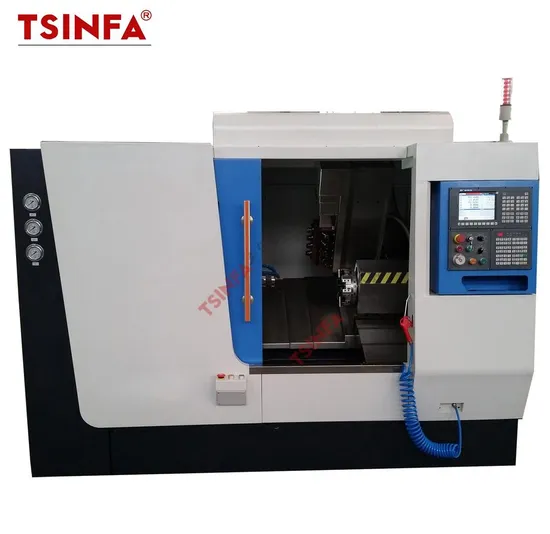

TFA8S CNC lathe is a semi-closed-loop inclined bed turning and milling machine with X, Y, Z, and C axis servo control. It has a compact and reasonable structure and dimensions, and the main axis (C axis) is driven by a servo motor. It can realize the turning of the outer circle, end face, and thread of various materials of shafts, disks and other parts, and various processes such as radial and axial curved surface milling and drilling, and is suitable for the efficient processing and manufacturing of small parts.

Product Parameters

Specifications	unit	TFA-8S
Max. swing over bed	mm	450
Max. swing over cross slide	mm	160
Max. processing length	mm	450
Cross slide length	mm	780
Bed structure	/	30° slant bed
Distance from cross slide to spindle center	mm	80
Spindle nose	/	A2-5
Spindle bore	mm	56
Max. spindle speed	rpm	50-4500
Main motor power (C axis)	kW	7.5
Power head specification	/	Side 4 + end 4
Power of power head	kw	2.3
Power head speed	r/min	3000
Center distance of power head	mm	60
X axis travel	mm	500
Z axis travel	mm	450
Y axis travel	mm	240
X axis Rapid traverse speed	mm/min	24000
Z axis Rapid traverse speed	mm/min	24000
Y axis Rapid traverse speed	mm/min	15000
Tool post type		8 station hydraulic turret 4 + 4 power head
X / Y / Z positioning accuracy	mm	0.006
X / Y / Z repeated positioning accuracy	mm	0.003
Spindle (c-axis) indexing and positioning accuracy	/	0.02"(70 arc-second)
Spindle (c-axis) indexing and repeated positioning accuracy	/	0.006"(20 arc-second)
weight	T	3
Dimension	mm	2500x1800x1800
