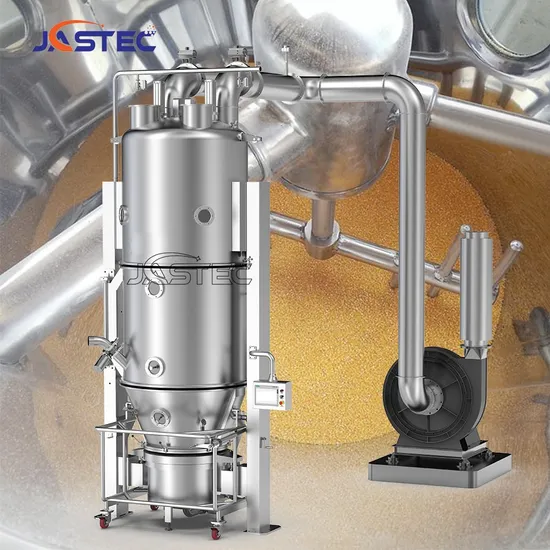

Advanced Fluid Bed Technology for Efficient Material Processing. High-Performance Fluid Bed Dryer for Optimal Powder Drying Industrial Fluid Bed Dryer System

Product Description

Product Description
FLuized bed is a process machine widely applied for solid preparation production in the pharmaceutical industry. it has mixing,drying, granulating functions. it is also widely used in such industries as medicine, chemical industry, food, etc.
FLPS Serious Fluid-bed Multi-processor is added bottom spray on the
base of FLP series Fluid-bed Granulator machine, thus can realize
drying,granulating and bottom spray coating on one machine, and with
function of mixing raw material, granulation, dying and coating for
granules or pellets. The equipment is PLC auto controlled and well
satisfies with the current GMP and the National Pharmacopoeia.
Finished Equipment
Technical parameter

Item Model		FLPS-30	FLPS-60	FLPS-120	FLPS-200	FLPS-300
Chamber volume (L)	Bottom spray	80	150	330	417	760
	Top spray	100	220	330	577	980
Production capacity (kg/batch)	Bottom spray	15-20	15-30	50-80	60-100	100-190
	Top spray	15-30	30-60	60-120	120-200	200-300
Fan power(kw)		11	18.5/22	22/30	30/37	37/45
Electric heating power(kw)		30	30	45	80	90
Steam pressure (MPa)		0.4	0.4	0.4	0.4	0.4
Steam consumption (kg/h)		180	300	360	420	481
Compressed air pressure(MPa)		0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Compressed air consumption(m³/min)		0.6	0.9	1	1	1.5
Main machine weight(kg)		1200	1600	1800	2300	2500
Dimensions (mm)	H	3374	4353	4908	5040	5865
	D	772	1022	1024	1378	1580
	W	984	1340	1540	1540	1840
Note:	Our company can customize products according to user requirements.

Application
Working Principle
Working Principle: The intake air is processed from the inlet AHU through filters and heated, then lead into the lower bowl. The material is blow up evenly by hot air which passes through air distribution plate of product bowl, then forms continuous fluidized state and dried evenly by hot air.
In case of top spray for fluidized granulation, use top spray movable product bowl, the binder is top sprayed through spray guns in diffuse chamber into the product bowl, and spray onto the material surface atomized by compressed air. The product granules cohere each other by the binder and get the binder bridge to form the core granules, then grow up to form required wet granules, which the binder dried evenly by hot air and finally get dry granules.
In case of bottom spray for coating, use bottom spray movable product bowl, the binder changes to spray from bottom spray guns and atomized. The granules or pellet sprayed from bottom to top inside of fluidized chamber and coated by coating solutions, then fall back along the wall of bottom spray product bowl and dried by hot air, which back to bottom are sprayed again from fluidized chamber and repeat coating process.
FEATURES:
1. INLET AHU
The inlet AHU including three stage filters with G4, F8 and H13, dehumidifier with surface cooler, inlet air temperature controlled by cold and hot air mixing door, inlet air volume by inverter controlled which can set and adjust.
2. MAIN BODY STRUCTURE
The main body structure consists of lower bowl, top spray movable product bowl , bottom spray movable product bowl , diffuse chamber and filter chamber. The lower bowl, movable product bowl and diffuse chamber are silicon inflatable sealed with compress air inspection to assure the reliable sealing.3. PRODUCT FILTER

The pulse anti-blow filter clean device adopt anti-static cloth filter (in case request, stainless steel anti-blow filter is available), which is silicon inflatable sealed with the filter chamber with compress air inspection to assure the reliable sealing. A dust sensor is mounted on the exhaust piping and interlocked with PLC control sys to secure the product safety during production.

4.EXHAUST AHU
The exhaust dust collection sys can be optionally designed upon request to protect environment.
5. 2 BAR & 10 BAR DUST EXPLOSION DESIGN
The 2 bar and 10 bar powder ex-proof design is selectable to ensure the operator, equipment and environment safety with reliable grounding device.
6.FLUIDZED GRANULATION
In case of fluidized granulation is requested, the binder solution tank and spray sys with peristaltic pump would be supplied. The binder sprays into product bowl through spray guns and spray onto the material surface atomized by compressed air. The product granules cohere each other by the binder and get the binder bridge to form the core granules, then grow up to form required wet granules, which the binder dried evenly by hot air and finally get dry granules.
7. BOTTOM SPRAY FOR COATING
In case of bottom spray for coating, use bottom spray movable product bowl, the binder changes to spray from bottom spray guns and atomized. The granules or pellet sprayed from bottom to top inside of fluidized chamber and coated by coating solutions, then fall back along the wall of bottom spray product bowl and dried by hot air, which back to bottom are sprayed again from fluidized chamber and repeat coating process. The height of fluidized chamber can be adjusted according to the quantity of material, and get the best fluid state. The bottom spray air distributing plate can be changed to different spray distance and flow based on material characteristics.
