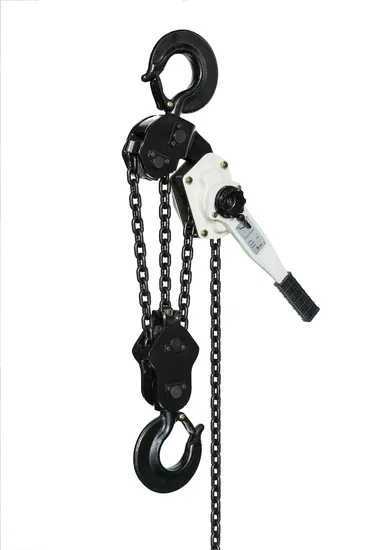

9ton 1.5m Hsh-E Type Manual Lever Hoist Lifting Machine
| Negotiable | 10 Pieces (MOQ) |
Basic Info.
Model NO.
HSH-E
Application
Lifting Platform
Type
Chain Hoist
Sling Type
Chain
Lift Speed
<2m/min
Maximum Lifting Height
3m
Chain Falls
1
Certification
CE, GS TUV
Condition
New
Color
Orange
Transport Package
Wooden Case, Carton with Pallet
Trademark
Shuangge
Origin
China
HS Code
84251900
Production Capacity
1000sets/Day
Product Description
Product Description1.Capacity: 0.75T-9T
2.TUV CE&ISO&GS
3.G80 alloy load chain
4.We are the manufactuer SHUANG GE 51 BRAND HSH-E Chain Block (Shuang Ge Brand) produced by 51 hoist
| Model | Capacity (t) | Standard lift(m) | Running test load(T) | Headroom (mm) | Load chain | Effort required to lift max load(N) | Main Dimensions(mm) | Packing measurements (cm) | Extra weight per meter of extra lift(kg) | Lenghth of leverhandle (mm) | Net weight (kg) | |||||
| Columns | Dia+Pitch (mm) | A | B | C | D | E | ||||||||||
| HSH-E0.5 | 0.5 | 1.5 | 0.75 | 260 | 1 | 5 | 340 | 105 | 78 | 95 | 35 | 28 | 35.5x9.5x11.5 | 0.52 | 300 | 4 |
| HSH-E0.75 | 0.75 | 1.5 | 1.125 | 325 | 1 | 6 | 140 | 148 | 90 | 136 | 35 | 29 | 37x13x17 | 0.8 | 280 | 7 |
| HSH-E1 | 1 | 1.5 | 1.5 | 340 | 1 | 6 | 250 | 148 | 90 | 136 | 40 | 34 | 37x13x17 | 0.8 | 280 | 7.2 |
| HSH-E1.5 | 1.5 | 1.5 | 2.25 | 380 | 1 | 8 | 220 | 172 | 98 | 160 | 47 | 38 | 51x14x19 | 1.4 | 410 | 11 |
| HSH-E3 | 3 | 1.5 | 4.5 | 480 | 1 | 10 | 320 | 200 | 115 | 180 | 54 | 44 | 54x19x22 | 2.2 | 410 | 21 |
| HSH-E6 | 6 | 1.5 | 7.5 | 620 | 2 | 10 | 340 | 200 | 115 | 235 | 62 | 52 | 54x19x22 | 4.4 | 410 | 31 |
| HSH-E9 | 9 | 1.5 | 11.25 | 700 | 3 | 10 | 360 | 200 | 115 | 340 | 85 | 56 | 55x29x22 | 6.6 | 410 | 47 |
FAQ
Q1:Why Choose Wuyi Lifting?
A:Wuyi established in 1952,more than 70 years experience in the chain hoist field with professional technical team.
Q2 :Can I have samples to test?
A: Yes, Sample can be sent for testing.
Q3. Q:Guarantee
A: One year
Q4: Q:OEM service
A: OEM service is available.\
Q5. What's the lead time for regular order?
A: The normal delivery time is 30-45 days.
Q6. What is your payment terms?
A: 30% T/T in advance, 70% balance before shipment or L/C.
Q7. What is your terms of packing?
A: Cartons with Pallet or wooden case
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
