15 Ton Vertical Micro USB Plug Injection Molding Machine Pricene Price

Product Description

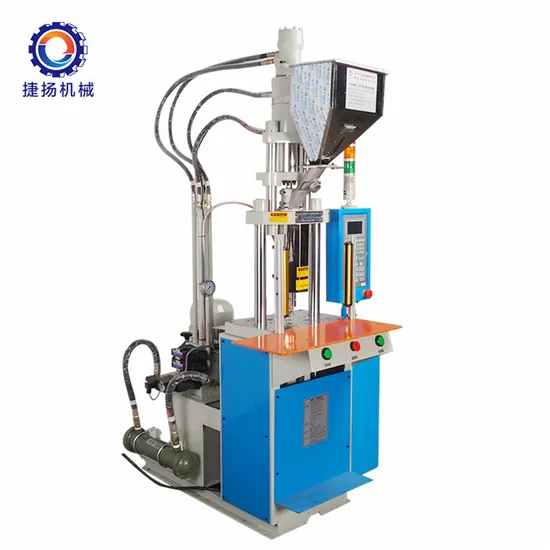

15 ton vertical micro usb plug injection molding machine pricene price
1.in-line screw type injection apparatus.
2.temperature control.three-stage.fast,back pressure,screw speed stepless adjustment for a variety of precision plastic parts molding.
3.the lower mold fixed on the movable mold,insert items for a good positioning of the resistance,and has finished top of the device.
4.the low-pressure mold clamping device protection security.
5.the tube can lift,clean and convenient material head,fixed moldeasier.
Parameter of Machine

Model	Unit	JY-160S2
Screw Barrel Diameter	mm	26	28
Injection Pressure	kg/cm2	1183	1019
Max. Shot Weight	gram	50	58
Max. Shot Weight	cm3/sec	34.6	40
Screw Barrel Route	mm	105
Screw Barrel Rotary Speed	rpm	0-215
Nozzle Contact Force	tons	4.45
Nozzle Retraction Nozzle	mm	130
Number of Temperature Control	pcs	2
Clamping Force	tons	15
Platen Size	mm	450*280
Distance Between Tie Bere	mm	265
Min. Mold Height	mm	100/25
Opening Stroke	mm	190
Max. Opening Mold Distance	mm	290/215
Ejetor Force	tons	1.3
Ejetor Stoke	mm	35
Max. Hydraulic Pressure	kg/cm2	140
Pump Output	L/min	17.5
Oil Resservoir Capacity	Liter	80
Cooling Water Consumption	L/hr	400-600
Pump Motor Power	kw/hp	2.2/3HP
Barrel Heating Power	kw	1.8
Total Power	kw	4.2
Machine Weight	tons	0.45
Machine Dimension(LxWxH)	meter	1.35*0.92*2.06
Shipping Weight	tons	0.6
Shipping Measurements(LxWxH)	meter	1.3*1.0*2.23

Application :
About Us
Packing & Shipping :
Our Services
1) 24 hours services, the answers to any questions will be replied sooner.
2) Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.)Materials suppliers offered ,the contact ways to different kinds of the materials and equipments of your products can be supported here, you can contact them by yourself .
4) After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5) The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6)12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.
Q5: Why choose Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
