Premium Tungsten Carbide B1 Wood Cutting Cutter Tool

Product Description

Product Description

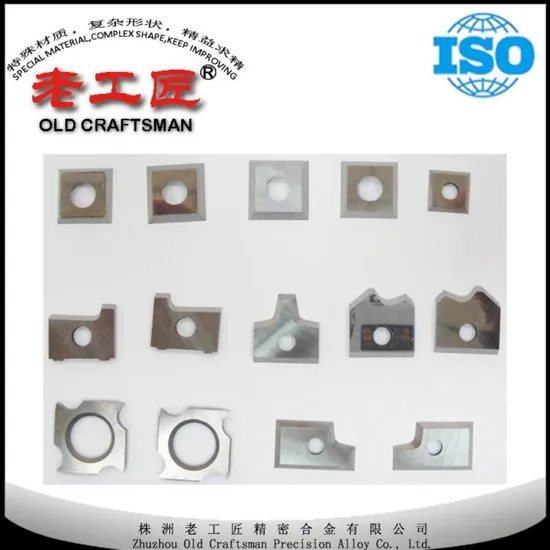

tungsten cemented carbide B1 type wood cutting cutter
1. 100% raw material to produce tungsten carbide products.
2. Hip sintered, high hardness, high wear resistance
3. Various sizes and full types available
4. Reasonable price,Fast delivery time
5. OEM Customized(small order accepted,professional technical support)
6.ISO 9001 Certification
More details of specific type, please inform us
Product information
Good value precision system for significant increase of knife-life time.
It consists of carbide blank, multiple moveable and regrindable - steel backing plate with precision positioning.
we can be used in all cutterheads with 60° back corrugation.
Long lifetime
Submicron-grades help you to achieve the longest lifetime in wood and plastic applications. TIGRA SuperPac
is available in 4 tungsten carbide grades to satisfy all your needs: mixed - board/MDF - wood.
High security
we can be used up to 12000 rpm if the cutterhead is designed for this speed. This is possible
due to enhanced security of our deep corrugation.
High precision
The positioning in the accurate corrugation results in highest precision.
Best surface quality
Accurate positioning and submicron grades result in the best surface of the material. Especially recommended:
TL15 with clearance angles like HSS and Stellite.
Profiling and regrinding
Multiple regrindings are possible and - due to the positioning system - only necessary on the carbide blank.
High cost-effective
Best carbide grades, low prices and multiple regrindings guarantee a high economic viability.
With over 10 working procedures from materials to products and national sampling inspection rate at each step, the quality will be strictly controlled.
The hardness and durability will be promised by special heat treat technology
Germany and USA imported quality supervising equipments, such as Rockwell hardness tester, Metallograph etc.
Products can be tracked by the product process card (Per as ISO9001:2008 requirement).
Elaborate packing forms make sure the goods won't be damaged during transportation and in stock.
The best logistic companies are selected to make sure the goods will be transported on time and safely.
Grade of raw material:

Grade	Binder %	Hardness(HRA)	TRS(N/mm2)
YG4F	4.0	93.0	1700
YG6A	6.0	92.5	1800
YL10.2	10.0	91.8	2400
YG6X	6.0	91.5	1800
YG6	6.0	90.5	1900
YG8	8.0	89.5	2200
YG12X	12	88.5	2300

Description of woodworking tools

Specification					Item No
L	W	T	α	d	BT20A	YG6	BK10UF
7.5	12	1.5	35	4.1	812000	812001	812005
8.6	12	1.5	35	4.1	912000	912001	912005
9	12	1.5	35	4.1	912010	912011	912015
9.6	12	1.5	35	4.1	1012000	1012001	1012005
10	12	1.5	35	4.1	1012010	1012011	1012015
10.5	12	1.5	35	4.1	1112000	1112001	1112005
11	12	1.5	35	4.1	1112010	1112011	1112015
11.6	12	1.5	35	4.1	1212000	1212001	1212005
13	12	1.5	35	4.1	1312000	1312001	1312005
13.6	12	1.5	35	4.1	1412000	1412001	1412005
14.6	12	1.5	35	4.1	1512000	1512001	1512005
15	12	1.5	35	4.1	1512010	1512011	1512015
15.7	12	1.5	35	4.1	1612000	1612001	1612005
16	12	1.5	35	4.1	1612010	1612011	1612015
17	12	1.5	35	4.1	1712000	1712001	1712005
18	12	1.5	35	4.1	1812000	1812001	1812005
19	12	1.5	35	4.1	1912000	1912001	1912005
20	12	1.5	35	4.1	2012000	2012001	2012005
24.7	12	1.5	35	4.1	2512000	2512001	2512005
25	12	1.5	35	4.1	2512010	2512011	2512015

Applications
Carbide reversible knives are used widely in Woodworking Processing Field.
Applications Recommended

Grade	HDF/MDF	Chipboard	Hardwood	Softwood	Plywood
YG4F	++	++	-	-	-
YG6A	++	++	++	-	+
YL10.2	+	++	++	+	+
YG6X	-	+	++	++	++
YG6	-	-	++	++	+
YG8	-	-	+	++	-
YG12X	-	+	++	++	-
++	Excellent
+	Good
-	Not too good
