Super-Above Excavator Brand New Hydraulic Excavator for Sale
Basic Info.
Model NO.
he-45
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Operation Weight
21900kg
Output Power
135/2050r/Min
Displacement
6.7L
Travel Speed(H/L)
5.4/3.1km/H
Max. Dumping Height
6780mm
Transport Package
Roro Ship
Specification
CE
Trademark
Super-above
Origin
Jiangsu, China
HS Code
8705109100
Production Capacity
1000PCS/Year
Packaging & Delivery
Package Size
650.00cm * 245.00cm * 265.00cm
Package Gross Weight
20000.000kg
Product Description

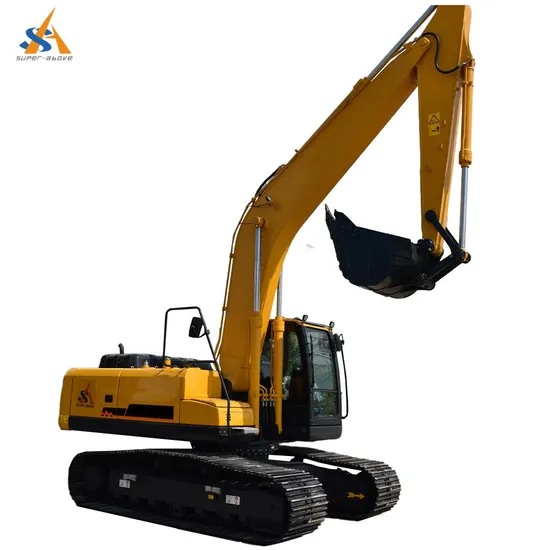

Product DescriptionSuper-above 21 Ton Hydraulic Crawler Excavator for Sale
21 ton 1.2 cbm brand new hydraulic crawler drilling excavator introductions The high-end configuration, performance excellence.
A strong driving force, low noise, low fuel consumption, more reliable.
The advanced hydraulic system for energy saving, the key hydraulic components are the international wellknown brand manufacturers imported, quality of products can be a good guarantee; combined with the latest research results, low energy consumption, fast response speed, control precision, the impact is small, can maintain a strong mining capacity and excellent operation efficiency.
Specifications of 20tons crawler excavator
| Main parameters and price as below, customerized equipment according to your work condition is acceptable. | ||
| SA215 | Unit | Parameter value |
| Operating weight | kg | 21900 |
| Bucket capacity | m³ | 0.8~1.3 |
| No. of cylinders | --- | 6 |
| Output power | kW/ r/min | 135/2050 |
| torque/speed | N.m | 740/1250 |
| Displacement | L | 6.7 |
| Travel speed(H/L) | km/h | 5.4/3.1 |
| Gradeability | % | 70 |
| Rotary speed | r/min | 11.8 |
| Ground pressure | kPa | 47.2 |
| Bucket digging force | kN | 149 |
| Arm digging force | kN | 111 |
| Main pump | -- | K7V125 |
| Rated flow of main pump | L/min | 2×225 |
| Main safety valve pressure | MPa | 34.3/37 |
| Pressure of pilot system | MPa | 3.9 |
| Max. digging height | mm | 9620 |
| Max. dumping height | mm | 6780 |
| Max. digging depth | mm | 6680 |
| Max. digging depth at the range of level 8 feet | mm | 6500 |
| Max. vertical wall digging depth | mm | 5715 |
| Max. digging reach | mm | 9940 |
| Min. swing radius | mm | 3530 |
| Length of boom | mm | 5680 |
| Length of arm | mm | 2910 |
