Bolted Type Enamel Tank Hydraulic Jacking System for Grain Silos in Stock

Product Description

Suitable for all kinds of large storage tanks (steel) and flat bottom corrugated board granary, enamel tank inverted installation construction.
Product Advantages
With sleeve process design, the shape is smaller, the weight is lighter, the miniaturization is easier to install and transport, and the application rate is high.
Reference Parameter

Hydraulic Jacks
Rated lifting weight	50KN
System pressure	16MPa
Hydraulic travel stroke	0.8m
Size of oil inlet and outlet	M18*1.5
Lifting height	2.3m
Hydraulic operating mode	Double-acting
Lifting mode	Rectangular steel frame
Lock mode	Hydraulic lock and Pin lock
Fixture type	Triangular bracket base, self-tapping fixed
Size	800*620*1180 mm
Weight	60 kg
Basic height of hydraulic jacks	1180 mm

Hydraulic Cylinder
Max working pressure	16 MPa
System pressure	380 V
System flow	38 L/min
Individual maximum displacement	5 L/min
Tank capacity	300 L
Motor speed	1470 r/min
Control voltage	DC 220 V
System temperature	20-60ºC
Size	2500*2000*1500 mm

Prodcut Features 1, This set of equipment is mainly composed of hydraulic jacking pump station, hydraulic cylinder, rectangular steel frame, etc., easy to install.
2, The equipment adopts PLC program to control jacking, which has the advantages of simple operation, high jacking synchronization precision and stable jacking process.
3, Hydraulic jacking pump station has two modes of manual and centralized control, hydraulic cylinder can be single or local (several) to adjust (fine tune) lift and fall; Multiple groups can be centrally controlled up and down; The jacking height can precisely control the butt adjustment of the tank wall welds.
4, Each hydraulic cylinder has a safety valve self-locking, equipment operation will not cause the tank or heavy objects to slide or fall due to power failure, the blasting of a high-pressure hose or the failure of a hydraulic cylinder, hydraulic jacking process is safe and reliable.
5, The plunger type hydraulic jacking system has no side force in the jacking process and has no influence on the tank wall.
6, The stroke of the hydraulic cylinder is 800 mm, which can meet the one-time jacking completion of the width of the wall panel below 2300 mm, reducing the jacking time, Save labor and other auxiliary costs.
7, The overall base length of the equipment is only 1180 mm, which can fully meet the inverted construction and installation process of large storage tanks, granaries and enamel tanks.
Installation Procedure
1, Install the first layer of tank wallboard/ corrugated plate
2, Install the granary vault
A. Install the central independent vault support fixture to ensure effective connection between vault and tank wall.
B. The top installation of the granary is divided into two parts: the first and second layer corrugated plate installation and the top installation of the granary.

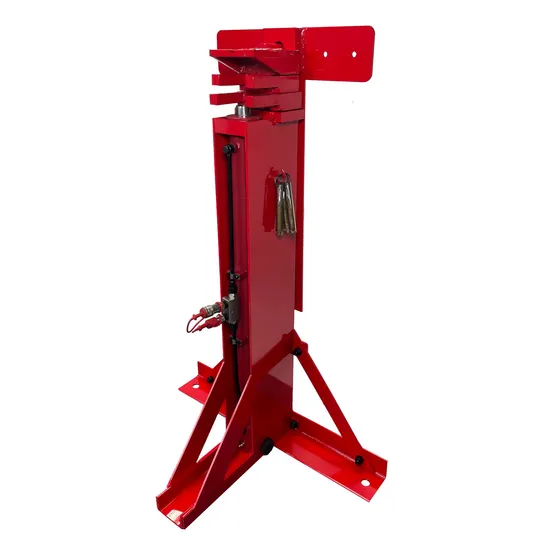

Connection of hydraulic jacks to tank wall panel
Hydraulic jacks lift condition
