7 Layers Soft Board Flex PCB Assembly FPCB Fabrication Flexible PCB Manufacturer
Basic Info.
Model NO.
XT0717-2
Combination Mode
Adhesive Flexible Plate
Application
Digital Products, Computer with LCD Screen, Mobile Phone, Aviation and Aerospace
Conductive Adhesive
Conductive Silver Paste
Flame Retardant Properties
V1
Processing Technology
Electrolytic Foil
Base Material
Pi
Insulation Materials
Organic Resin
Brand
Newtrue
Copper Thickness
35um,1oz,2oz
Min. Hole Size
0.15mm
Min. Line Width
0.075mm(3mil)
Min. Line Spacing
0.075mm(3mil)
Layer
1~8 Layers
Color
Yellow
PCB Assembly
Through-Hole
Solder Heat Resistance
10 Sec
Transport Package
15X10X21cm
Trademark
Newtrue
Origin
Made in China
Production Capacity
50000squre Meters
Packaging & Delivery
Package Size
31.60cm * 21.00cm * 6.80cm
Package Gross Weight
0.550kg
Product Description

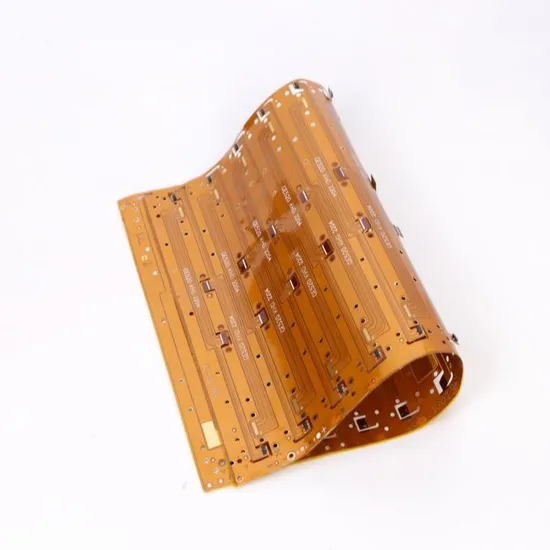

7 layers soft board ,Flex PCB Assembly ,PCB manufacturer , FPCB Fabrication Product ParametersIndustry-specific attributes
| Product name | Flex PCB |
| Base Material | FR-4,CEM-1,CEM-3,Hight TG,FR4 |
| Board Thickness | 0.11mm-0.5mm |
| Board Size | Min: 10x45mm Max:250x1200mm |
| Model Number | XT0717-2 |
| Type | FPC |
| Place of Origin | Guangdong, China |
| Brand Name | Xinda-ok |
| Copper Thickness | 35um,1oz,2oz |
| Min. Hole Size | 0.15mm |
| Min. Line Width | 0.075mm(3mil) |
| Min. Line Spacing | 0.075mm(3mil) |
| Surface Finishing | HALS/HALS lead free,Chemical |
| Solder mask color | Yellow PI |
| Layer | 1~8Layers |
| Material | PI/PET/PEM/FR-4 |
| Characteristic | Small Thickness |
| Color | yellow |
| PCB Assembly | Through-hole |
| Length | customized |
| Solder Heat Resistance | 10 Sec |
| Test | 100% Electrical |
| Process parameters | |
| Number of layers of soft board | 1~8 |
| Maximum processing area | 1900mm*250mm |
| The thickness of the finished product of the processed plate | 0.036mm~2.4mm |
| Wire copper foil thickness | 9μm~70μm (1/4oz~2oz) |
| Minimum hole diameter | ≥4mil (0.1mm) |
| Minimum line width/line spacing | 1.8mil/1.8mil(0.045mm/0.045mm) |
| Surface treatment process | chemical immersion gold, OSP, electroless nickel gold plating, electroplating nickel gold plating |
| Reinforcement fit tolerance ±0.2 | ±0.2 |
| Shape tolerance: steel mold tolerance | ±0.1mm |
| precision mold tolerance | ±0.05mm |
| Impedance tolerance ±10% | ±10% |
| Capacity | |
| Single Layer | 3500 square meters/month |
| Ordinary (impedance) double Layer | 14000 square meters/month |
| 3-4 layer soft board | 1500 square meters/month |
| 5-6 layer soft board | 1300 square meters/month |
| 7-8 layers soft board | 1000 square meters/month |
| Sample delivery time | |
| Single Layer | 2-3days |
| Ordinary (impedance) double Layer | 3-4days |
| 3-4 layer soft board | 7-9days |
| 5-6 layer soft board | 9-12days |
| 7-8 layers soft board | 12-15days |
| The first mass production delivery time | |
| Single Layer | 6days |
| Ordinary (impedance) double Layer | 7days |
| 3-4 layer soft board | 12days |
| 5-6 layer soft board | 14days |
| 7-8 layers soft board | 15days |
