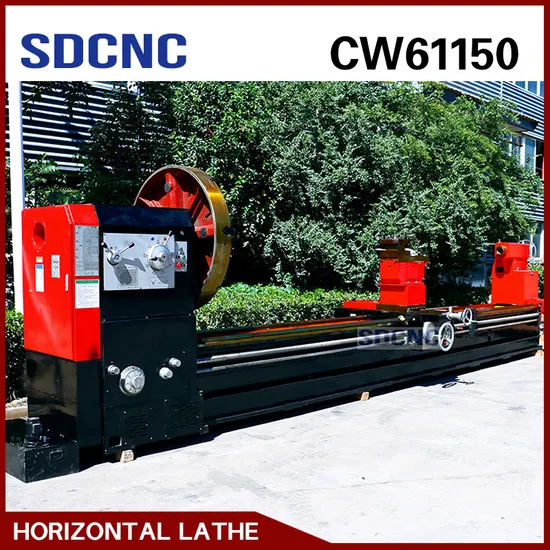

Heavy Duty Lathe Machine Cw61150 Universal Horizontal Metal
| US$36,500.00-38,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW61150
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Condition
New
Product Type
Lathe Machines Metal
Function
Lathe Machine
Keyword
Heavy Duty Lathe Machine for Sale
Key Word
Heavy Duty Lathe
Transport Package
Wood Packing
Specification
8100x2250x2050
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
810.00cm * 225.00cm * 205.00cm
Package Gross Weight
13300.000kg
Product Description
Product DescriptionProduct Parameters
| SPECIFICATIONS | Units | CW61150 |
| Swing over bed | mm | 1500 |
| Swing over cross slide | mm | 1000 |
| Distance between centers | mm | 1500/2000/3000/ 4000/5000/6000 |
| Guideway width | mm | 755 |
| Max. load capacity | T | 6 |
| Spindle bore | mm | 130 |
| Spindle bore taper | - | Metric φ140/MT6 |
| Spindle nose type | - | A2-15 |
| Spindle speed steps | - | FWD. 21 steps |
| Spindle speed range | rpm | 3.15-315 |
| Chuck | mm | φ1000 4-jaw manual |
| Turret/tool post | - | Manual turret 4 position |
| Tool shank size | mm | 45 x 45 |
| X axis travel | mm | 620 |
| Z axis travel | mm | 1350/1850/2850/3850/4850/5850 |
| X axis feed steps /range | mm/r | 56/0.05-6 |
| Z axis feed steps /range | mm/r | 56/0.1-12 |
| X axis rapid traverse | mm/min | 1870 |
| Z axis rapid traverse | mm/min | 3740 |
| Metric thread kinds /range | mm | 44/1-120 |
| Inch thread kinds /range | T.P.I | 31/28-3/8 |
| Module thread kinds /range | mm | - |
| DP thread kinds /range | D.P. | - |
| Tailstock quill diameter | mm | φ160 |
| Tailstock quill taper | - | MT6 |
| Tailstock quill travel | mm | 300 |
| Main spindle motor | kW | 22 |
| Rapid traverse motor | kW | 1.5 |
| Coolant pump motor | kW | 0.125 |
| Weight for 1500 | kg | 11200 |
| Weight for 2000 | kg | 11700 |
| Weight for 3000 | kg | 12300 |
| Weight for 4000 | kg | 13300 |
| Weight for 5000 | kg | 14300 |
| Weight for 6000 | kg | 15300 |
| Dimension for 1500 | mm | 4600x2250x2050 |
| Dimension for 2000 | mm | 5100x2250x2050 |
| Dimension for 3000 | mm | 6100x2250x2050 |
| Dimension for 4000 | mm | 7100x2250x2050 |
| Dimension for 5000 | mm | 8100x2250x2050 |
| Dimension for 6000 | mm | 9100x2250x2050 |
