Fully Automatic Measurement Metallographic Microscope Industrial High-Definition Optical Size Measurement Microscope

Product Description

Product Description
FXD-30MW Large type Trinocular Inverted Metallographic Microscope
Focusing mechanism Low-hand position coarse and fine adjustment coaxial focusing mechanism, with elastic adjustment device and fast focus random limit device, coarse adjustment stroke. per revolution: 38mm, fine adjustment accuracy: 0.002mm

Standard configuration		Machine model
Part	Specification	FCM5000W
Optical system	Infinity chromatic aberration correction optical system	·
Observation tube	Hinged trinocular head, 45° tilt, interpupillary distance adjustment range: 54-75mm, unilateral diopter adjustment ±5 diopter split ratio: binocular 100%, binocular:trinocular=80%:20%	·
Eyepiece	High eye point, ultra wide field of view plan eyepiece PL10X/22mm	·
Infinite long anomaly Field achromatic objectives	LMPL5X /0.15 WD10.8mm	·
	LMPL10X/0.3 WD12.2mm	·
	LMPL20X/0.45 WD4mm	·
	LMPL50/0.55 VASH.well	·
Converter	Internally positioned five-hole converter	·
Mirror body	Coaxial coarse and fine adjustment, coarse adjustment stroke per revolution: 38mm, fine adjustment stroke per revolution: 0.2 mm, focus adjustment Accuracy: 0.002mm, with tension adjustment device	·
	Fixed platform: size 160X250mm	·
Work surface	Metal stage plate (center hole Φ12mm) ·	·
	Mechanical moving ruler, stroke 120 (X) * 78 (Y) mm, stage extension plate	·
Reflected lighting system	Reflective Kohler illuminator with variable aperture diaphragm and centrally adjustable field diaphragm, adaptive 100V~240V wide voltage, 12V50W imported halogen lamp, center adjustable, brightness continuously adjustable	·
Polarizing accessories	The analyzer can be rotated 360 degrees, and both the polarizer and analyzer can be moved out of the optical path	·
Color filter	Green color filter, blue color filter (Φ32mm)	·
Metallographic analysis system	FMIA2023 genuine metallographic analysis software, USB2.0 Sony chip 12 million camera device, 0.5X adapter mirror interface,micrometer.	·

Optional configuration
Part	Specification
Eyepiece	High eye point, ultra-wide field of view plan eyepiece PL15X/16mm	o
	High eye point, ultra-wide field of view plan eyepiece PL10X/22mm, with cross ruler	o
Objective lens	Infinity long field plan achromatic objective lens LMPL100X/0.80 WD2.1mm	o
Camera device	USB3.0 Sony chip 12 million camera device, USB3.0 Sony chip 20 million camera device, 1X adapter port.	o
Computer	HP Business Jet

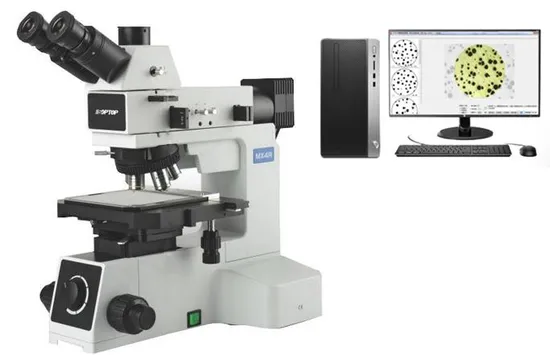

Introduction The FXD-30MW computerized metallurgical microscope is a trinocular inverted metallurgical microscope, which can provide superior image quality and a stable and reliable mechanical structure. The machine is easy to operate, complete with accessories, and is widely used in metallographic analysis of teaching and scientific research and material testing in factory laboratories. Observation tube Hinged trinocular, adjustable diopter, 45° inclination, can be used for photography, capture and save observation images, and configure computer and professional metallographic analysis software to realize image analysis. Stage The coaxial low-hand position adjustment moving ruler and the stage extension board can be installed to expand the application space and meet the needs of customers with different requirements Technical Data Configuration Model Parts Specification FXD-30MW Optical system Infinity chromatic aberration correction optical system · Observation tube Hinged trinocular head, 45° tilt, interpupillary distance adjustment range: 54-75mm, unilateral diopter adjustment ±5 diopters Diopter ratio: binocular 100%, binocular: trinocular = 80%: 20% · eyepiece High eyepoint, ultra-wide field of view plan eyepiece PL10X/22mm · High eyepoint, ultra-wide field of view plan eyepiece PL10X/22mm, with cross-differentiation ruler O High eyepoint, ultra-wide field of view plan eyepiece PL10X/22mm, adjustable diopter O High eyepoint, ultra-wide field of view plan eyepiece PL15X/16mm O Objective lens (Infinite long working distance plan achromatic) LMPL5X /0.15 WD10.8mm · LMPL10X/0.3 WD10mm · LMPL20X/0.45 WD4mm · LMPL50X/0.55 WD7.8mm · LMPL100X/0.80 WD2.1mm O converter Internal positioning five-hole converter · Mirror body Coaxial coarse and fine adjustment, coarse adjustment stroke per revolution: 38mm, fine adjustment stroke per revolution: 0.2 mm, focusing accuracy: 0.002mm, with elastic adjustment device · Fixed platform:Size 160X250mm · Workbench Metal stage plate (center hole Φ12mm) · Metal stage plate (center hole Φ25mm) O Mechanical moving ruler, stroke 120(X)*78(Y)mm · Stage extension · Reflective lighting system Reflective Kola illuminator, with variable aperture diaphragm and center adjustable field of view diaphragm, adaptive 100V~240V wide voltage, 12V50W imported halogen lamp, center adjustable, brightness continuously adjustable · Polarized accessories The analyzer can be rotated 360 degrees, and both the polarizer and the analyzer can be moved out of the light path · Color filter Green filter, blue filter (Φ32mm) · Metallographic Analysis System FMIA2021 genuine metallographic analysis software, USB2.0 Sony chip 12 million camera device, 0.5X adapter lens interface, micrometer. · Computer
FMIA2021 New version of metallographic image analysis software
Introduction: FMIA2021 version of the metallographic image analysis software system is our company to combine the current foundry enterprises, auto parts enterprises, heat treatment enterprises, bearing steel industry, power system industry, railway parts industry, and related testing companies for metallographic testing needs, improve product quality The pass rate helps improve the inspection level of each laboratory. We collect the needs and opinions of experts and teachers in various industries to develop this FMIA2020 version of the metallographic image analysis software system.
The national standard library of the software system contains about 700 commonly used sub-modules in 150 categories, which basically cover the commonly used metallographic standards and meet the requirements of metallographic analysis and inspection of most units. Designate open related categories according to different industry needs to meet industry testing requirements. All modules can be called for free for life, and the standard is upgraded for free for life.
In view of the continuous increase of new materials and imported grade materials, materials and evaluation standards that have not been entered in the software can be customized and entered. Features: Software installation is more intuitive and concise
The new software installation, registration, calibration guide mode is simple and clear, and can be completed through the default prompt.
Genuine Software Assurance System
After the software installation is completed, first activate the genuine software, and secondly register the computer hardware ID, so as to ensure the genuine rights and interests of customers.
Demand standard can be customized
In addition to the standard testing modules, special testing modules can be customized according to customer needs, such as: enterprise standards, special industry standards, etc.
7 major inspection categories quick entry
Quick access to 7 major categories of statistical production: grain size, non-metallic inclusions, microstructure of steel, decarburization layer analysis, gray iron, ductile iron, carbon steel spheroidization, etc., plus a metallographic teaching.
Report templates can be modified
Report templates can be tailored for different companies.
Genuine software can be upgraded
According to the standard implementation time of the National Standardization Committee, the software will be upgraded for free.
Wide range of computer systems
This software can be installed and run under Windows 7 and Windows 10. The latest metallographic software standards: --- Partial selection GB/T 6394-2017 Grain size measurement and rating (grain boundary extraction, grain boundary reconstruction, single phase, dual phase, grain size measurement, rating)
GB/T 10561-2005/ISO 4967:1998 Determination of non-metallic inclusion content in steel
GB/T 7216-2009 Gray cast iron: graphite distribution shape, graphite length, pearlite quantity, carbide quantity, etc.
GB/T 9441-2009 Ductile Iron: Nodularity, Graphite Size, Pearlite Quantity, Carbide Quantity, etc.
GB/T 26656-2011 Compacted graphite cast iron: graphite morphology, vermicularization rate, pearlite quantity, phosphorus eutectic quantity, carbide quantity, etc.
GB/T 18254-2016 Metallographic inspection of high carbon chromium bearing steel
GB/T 34891-2017 Rolling bearing_Technical conditions for heat treatment of high carbon chromium bearing steel parts
GB/T 1499.2-2018 Steel for Reinforced Concrete Part 2: Hot Rolled Ribbed Steel Bar
GB/T 1299-2014 Tool and Die Steel
GB/T 3246.1-2012 Microstructure test method for deformed aluminum and aluminum alloy products_Part 1_Microstructure test method
GB/T 13925-2010 Casting high manganese steel: grades of undissolved carbides, grades of precipitated carbides, grades of superheated carbides
JB/T 7946-2017 Metallographic phase of cast aluminum alloy
JB/T 1255-2014 Rolling bearing_Technical conditions for heat treatment of high carbon chromium bearing steel parts
JB/T 9986-2013 Tool heat treatment metallographic inspection
QC/T 262-1999 Metallographic Examination of Automobile Carburized Gears: Martensite Needle Length, Carbide, Austenite Rating, Austenite Content
QC/T 502-1999 Metallographic inspection of automotive induction hardened parts
QC/T 553-2008 Metallographic Inspection of Cast Aluminum Pistons for Automobile Engines
TB/T2942.2-2018 Steel castings for rolling stock Part II: Metallographic structure inspection map.
TB/T 2478-1993 spring bar metallographic structure rating chart
TB/T 2451-1993 Metallographic examination of non-metallic inclusions in cast steel
TB/T 2944-1999 Carbon steel forgings for railway
DL/T 773-2016 12Cr1MoV steel spheroidization rating standard for thermal power plants_Spheroidization characteristics of ferrite and pearlite
DL/T 773-2016 12Cr1MoV steel spheroidization rating standard for thermal power plants_Spheroidization characteristics of ferrite plus bainite or bainite
DL/T 1422-2015 18Cr-8Ni series austenitic stainless steel boiler tube microstructure aging rating standard
ISO 4499-2016 Cemented carbides -- Metallographic determination of microstructure
ASTM A262-2015 Test procedure for susceptibility to intergranular corrosion of austenitic stainless steels
ASTM E45-2013 Method for Assessing Inclusion Content in Steel
The national standard library contains about 700 commonly used sub-modules in 150 categories, basically covering the commonly used metallographic standards and meeting the requirements of most units for metallographic analysis and inspection; the software randomly distributes about 120 commonly used sub-modules, and the others are all Lifetime free upgrade calls. Basic Skill: 1. Organizational Analysis
Correctly select the implementation standard of the material, through the camera system of the metallographic microscope, capture and take pictures of the metallographic structure of the sample, and enter the evaluation level interface:
(1) Automatic rating: There are quantitative standards in metallographic standards (such as calculation formulas, percentage ranges, etc.), the software automatically grades, gives metallographic grades, and generates metallographic inspection reports.
(2) Comparison rating: The software can also compare the sample map and the map in the gallery, and manually determine the level.
(3) Multi-module rating: Multiple modules can be counted at the same time
