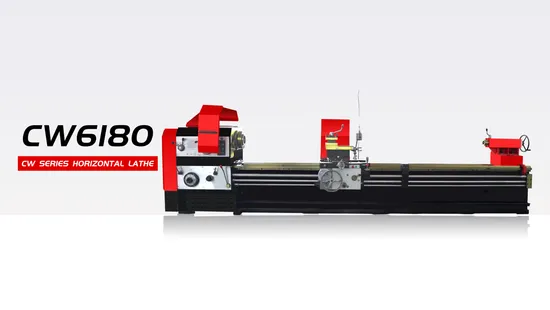

Cw6180 Large-Diameter Heavy-Duty Lathe, Stable and Efficient Horizontal Processing Equipment

Product Description

Product Description
This series lathe machine is suitable for internal and external turning, tappering, and other rotating faces, metric, module and inch threads, as well as drilling and pull oil slot. This machine could machining steel, casting, nonferrous metals and etc. The dimensional accuracy of machined workpiece could reach to IT6-IT7, and with good surface roughness. The Machine with handle breaker, easy to operate, safe and reliable.
Product Parameters

Type	CW6180	CW6280
Max. swing over bed	800mm
Max. swig over cross slide	550mm
Max. length of work piece	1500/3000/4000/5000/6000mm
Max. length of machining	1350/2850/3850/4850/5850mm
Max. swing in gap	--	1000mm
Max. length in gap	--	230mm
Width of bed	550mm
Spindle bore	105/130/150mm
Spindle nose type	A2-11
Spindle motor	11kw
Spindle speed	6--800rpm
Number and range of length-ways feeds	64/0.1--24.3 (grades/mm)
Number and range of crosswise	64/0.05--0.912(grades/mm)
Number and range of machining metric thread	50/1--240(grades/mm)
Number and range of machining inch thread	26/1--14(number/kinds/mm)
Number and range of machining module thread	53/0.5--120(kinds/mm)
Number and range of machining diametric pitch	24/1--28(number/knds)
Screw pitch	12mm
Saddle rapid traverse speed	4000mm/min
Size of tool section	30×30mm
Dia. and tape of tail-stock quill	100/M5
Traverse of tail-stock quill	250mm
Cross amount of movement of tail-stock	±15mm
Overall dimension	3700/5200×1450×1540 mm
Net weight	3700/4700kg

Detailed Photos



Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
