High Pressure 30m3 to 90m3 Trailer Concrete Pumping Machine and Concrete Mixer Diesel Concrete Pump

Product Description

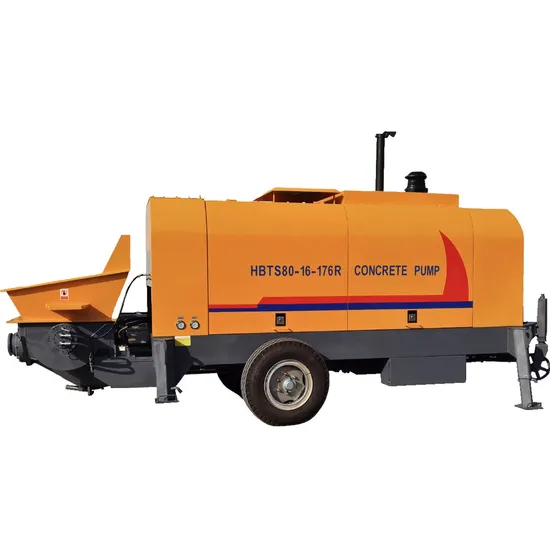

HBTS diesel /electric mobile trailer concrete pump for sale

The Concrete Pumps are concrete transport machines, which are widely used for the construction works in city construction, bridge construction, electric power and other energy source facilities and so on.
HBS/JBS series concrete pump adopt electric motor for power source, and HBTS/JBTS series pump adopt diesel engine for power source.
HBTS/JBTS type concrete pump was specially designed for the construction project which can't supply steady electric power source. Such as out of town, on the mountain, etc.
Product Description
Product Specification

Model					HBS/HBTS40	HBS/HBTS50	HBS/HBTS60	HBS/HBTS80
Max. Theoretic capacity			m3/h	40	50	60	80
Max, Theoretic pressure			Mpa	10	12	12.5	15.7
Motor/Diesel engine power			kw	45/66	55/84	90/129	110/176
Max. Theoretic distance	Vertical	m	120	150	200	250
		Horizontal	m	250	300	500	800
Disribution valve type			--	S valve
Hydraulic oil circuit type			--	Oper Circuit
Specification of concrete cylinder			mm	Ø160x1000	Ø180x1200	Ø200x1800	Ø200x1800
Specification of main oil cylinder			mm	Ø100x1000	Ø125x1200	Ø140x1800	Ø140x1800
Oil tank capacity			L	300	300	420	420
Hopper capacity			L	600	600	600	600
Max. Aggregate diameter			mm	Slick scree: 30 Scree: 20	Slick scree: 40 Scree: 30	Slick scree: 50 Scree: 40
Dimension (LxWxH)			mm	4500×1750×1600	4800×1800×1650	5800×2000×1750	5800×2000×1800
Overall weight			kg	3200	3500	5500	5800
pulling speed			km/h	≤8

Product Details
Successful Projict& Shipping
Certifications
ISO9001
CE
You May Like
Related Products

Mobile full-automatic concrete batching plant for ready mix concrete china mobile concrete mixing plant $16,500.00-25,000.00 / set 1 set

Fully automatic 90-120 M3/h Ready Mixing Concrete Batching Plant Low Cost Professional Factory Superior Concrete Mixing Machine $25,600.00-36,000.00 / set 1 set

25 m3/h portable mini concrete batching plant $15,000.00 / set 1 set

WBZ500 Concrete Mixer Series of Mobile Stabilized Soil Mixing Plant Soil Stabilizer Machine Hengyuan factory price for sale $23,500.00 / set 1 set

full automatic compact cement plant ready mobile mini mix concrete batching plant concrete mixing plant 25m3/h $17,500.00 / set 1 set

00:00
00:00
Company Profile
HENAN HENGYUAN CO.,LTD
Henan hengyuan Co., Ltd. is a professional engage in the research development sale and service on construction machinery: concrete mixer, concrete batching plant, concrete pump,concrete mixer pump, concrete pump truck, asphalt mixing plant and the related spare parts. We are located in zhengzhou city, henan province.Our Associated factory is also located in Xingyang, Zhengzhou city, which is founded in 1999.All our products are passed the ISO9001 and our concrete batching plant passed CE certification.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, our main market including Europe, Uzbekistan, Russia, Philippine, Malaysia, Brazil, Pakistan, Middle east and Africa. We are equipped with the CNC cutting machine, robot welding machine. Our R&D department provide the strong technical support and enable us to receive some OEM, ODM projects.We are reliable supplier of the construction machines supply with 18 months warranty.
FAQ
Q1:Are you original manufacture? A:Yes, We are factory and a professional manufacture of concrete batching plant and concrete mixer and we have the whole series products you need.
Q2:What about the warranty time?
A:18 months.
Q3:What about the delivery time?
A:10-15 days after receving the deposit.
Q4:Do you supply after-sale service?
A: Yes,we have a professional service team that can solve problems ASAP on site or on line.
Q5:Can I visit your factory?
A:Yes. welcome to your visiting or on line any time when you are convenient.
