Ahyw Bending Machine Ywb Delem Da53t CNC Press Brake Machine

Product Description

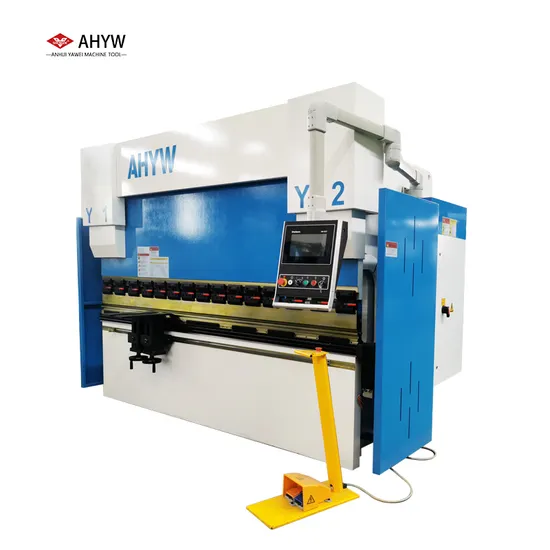

ANHUI YAWEI 135T3200 CNC PRESS BRAKE
Product Description
Press brake, also known as a brake press, is a machine tool for bending sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a matching punch and die.
CNC press brake use for continues and complex working pieces manufacturing, advance in Efficiency. Main features• Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance
• Be capable of be controlled at random point within the stroke
• Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm
• Deflection compensation table or crowning system for high precision
• Holland Delem DA53T CNC together with linear scale, Bosch-Rexroth valves, servo motors and other famous brand elements to ensure excellent performance
Machine Block YWB series cnc press brake features a rigid frame for minimum deflection under the load. Machine welding is made by welding aparatus & welding robots. After the welding,we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy. All referance surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time.
CNC Backgauge AHYW press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.
DA53T CNC System
* "Hot-Key" touch navigation
* 10.1″ high-resolution color TFT
* Up to 4 axes (Y1, Y2 + 2 aux. axes)
* Crowning control
* Tool/material / product library
* Servo and frequency inverter control
* Advanced Y-axis control algorithms for closed-loop as well as open-loop valves
* TandemLink (option)
* USB memory stick interfacing
* Profile-T offline software
Detailed Photos
Technical Parameters

TYPE	Throat Depth (mm)	Worktable Length (mm)	Width (mm)	Dimension (mm)	Nominal Force (KN)	Slider Travel (mm)	Weight (kg)	Power (kw)
30t/1600	200	1600	60	2000*1800*2150	300	150	2700	4
40t/2500	200	2500	60	3000*2000*2420	400	150	4000	5.5
63t/1600	350	1600	60	3000*2000*2420	630	200	4000	5.5
63t/2500	400	2500	60	3000*2000*2420	630	200	5500	5.5
63t/3200	400	3200	60	3700*2000*2420	630	200	/	5.5
80t/2500	400	2500	70	3000*1800*2380	800	200	5600	7.5
100t/3200	400	3200	70	3730*2000*2500	1000	200	7900	7.5
100t/4000	400	4000	70	4500*2000*2500	1000	200	13000	7.5
125t/3200	400	3200	70	3750*1950*2550	1250	200	8200	7.5
125t/4000	400	4000	70	4550*1950*2550	1250	200	10000	7.5
160t/3200	400	3200	70	3800*1950*2700	1600	200	10300	11
160t/4000	400	4000	70	4600*2000*2670	2000	200	11000	11
200t/3200	400	3200	250	3800*2000*2670	2000	200	12500	15
200t/4000	400	4000	400	4600*2000*2670	2000	200	13100	15
300t/4000	400	4000	260	4800*1980*3320	3000	300	21000	22
400t/4000	400	4000	280	5100*2300*3420	4000	300	26000	30
