Metal Stamping Die/Progressive Die/Punch Die for Home Appliances. Metal Stamping Die/Progressive Die/Punch Die for Air Conditioner Tube Sheet
| Negotiable | 1 Set (MOQ) |
Basic Info.
Technics
Cutting Die
Process Combination
Progressive Die
Manufacturing Technology
Automation Technology
Driving Motor Type
Permanent Magnet
Mold Cavity Technology
CNC Milling
Milling Speed
High Speed
Parts Detection Method
Measurement of Three Axis NC
After-sales Service
Provide
Tolerance
0.005-0.01 mm
Surface Treatment
Qpq Td Titanium Coating
First Trial
Provide Ti Samples 30-50 Days After Mold Drawings
Lifetime
Depend on Customer′s Production Capacity
Transport Package
Wooden Case
Trademark
GetWeld
Origin
China
HS Code
820730009
Production Capacity
1000 Sets/Year
Product Description
1.Basic info| Product Name | Metal Stamping Die/Progressive Die/Punch Die for Home Appliances. Metal Stamping Die/Progressive Die/Punch Die for Air Conditioner |
| Material | SPCC SPCE SAIC SGCC SECC PCM SUS 5052 |
| Die Material | 45# P20 Cr12 Cr12MoV SKD11 DC53 SKH-51 |
| OEM/ODM | Yes |
| Specification | Up to design |
| Production Capacity | 60,000,000 CNY |
| Design Software | Auto CAD NX Auto Form |
| Standard | ISO9001 |
| Quality Confirm | Can provide testing video, inspection certificate and sample of product |

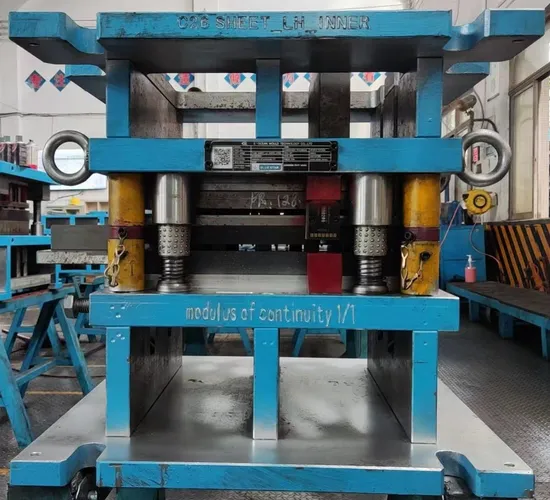

2.Product shows
3.Processsing equipments
| Devicename | Type of processed material | Machining Precious |
| CNC | Surface finishment Ra 6.3-1.6 | 0.03 |
| Low speed wire cut | Surface finishment Ra 0.2 | 0.005 |
| Middle speed wire cut | Surface finishment Ra 0.8-1.6 | 0.01 |
| WEDM-HS | Surface finishment Ra 6.3 | 0.02 |
| Radial drill | 0.2 | |
| Griding machine | Surface finishment 0.16-0.04 μm | 0.02 |
| Lathe | Surface finishment Rα 10-0.16 μm | 0.02 |
4.Detection equipments
| Devicename | Specification | QTY | Test item |
| CMM | DL18106CMM | 1 | Three coodinate dimensions |
| Portable spectroscope | 1 | Material chemical composition | |
| Anime with probe | DL4030-TA | 1 | Plane size |
| Rockwell hardness tester | HR-150D | 1 | Heat treatment hardness |
| Metallographic analyzer | 200M | 1 | Metallographic structure |
| Ultrasonic flaw detector | SFD201 | 1 | Internal structure of materials |
| Surface roughness testor | 130A | 1 | Surface finishment |
| Portable hardness testor | HD-110A | 1 | Heat treatment hardness |
| Digital height gauges | 1 | Height |
