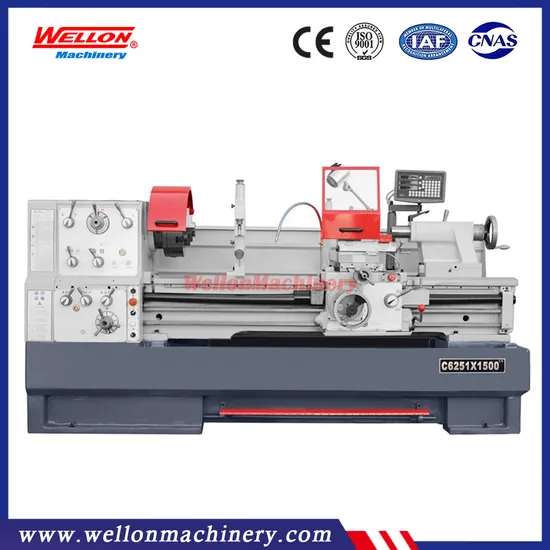

Horizontal Lathe Machine C6251 Metal Turning Lathe Machine

Product Description

Product Description

Horizontal Lathe Machine C6251 Metal Turning Lathe Machine

Detailed Photos
Product Parameters

Performence Features:
The guide way and all gears in the headstock are hardened and precision ground.
The spindle system is high rigidity and accuracy.
The machines have powerful headstock gear train, high rotating accuracy and smooth running with Iow noise.
An overload safety device is provided on the apron.
Pedal or electromagnetic braking device.
Tolerance test certificate, test flow chart included
Spindle bore 105mm is optional
Technical parameter:

SPECIFICATION	C6251
Swing over red	510mm
Swing in gap	300mm
Swing of gap	738mm
Length of gap	200mm
Distance between centers	1000/1500/2000/3000mm
Width of bed	350mm
Spindle nose	D1-8
Spindle bore	80mm
Taper of spindle bore	No.7Morse
Range of spindle speed	12changes 25-1600r/min
Travel of compound rest	130mm
Travel of cross slide	326mm
Leadscrew pitch	6mmOr4T.P.L
Max.section of tool	25×25mm
Longitudinal feeds range	35kinds0.059-1.646mm/rev
Cross feeds range	35kinds0.020-0.573mm
Metric threads range	47kinds0.2-14mm
Inch threads range	60kinds2-112T.P.L
Diametrical pitches range	50kinds4-112D.P.
Module pitches range	39kinds0.1-7M.P.
Dia of tailstock sieeve	75mm
Travel of tailstock sleeve	180mm
Morse taper of tailstock sleeve	No.5Morse
Cross adjustment	13mm
Power of main motor	7.5kw(10HP)3PH
Power of coolant pump	0.1kw(1/8HP),3PH
Overall dimension(L×W×H)cm	239/284/334/434×112×143
Packing size(L×W×H)cm	245/290/340/440×113×182

Standard accessories:
Three Jaw Chuck and Adapter
Four Jaw Chuck and Adapter
Face Plates
Steady Rest
Follow Rest
Oil Gun
Thread Chasing Dial
Operation Manual
One set of Wrenches
Reduction Sleeve
Dead centers
Work lamp
Coolant system
Foot brake
Operate tools
Optional accessories:
Taper turning attachment
Lead Screw Cover
Tool post cover
Chuck cover
Quick change tool post
Live center
DRO
