Plastic Carbon Black Dispersion Tester

Product Description

Product Description

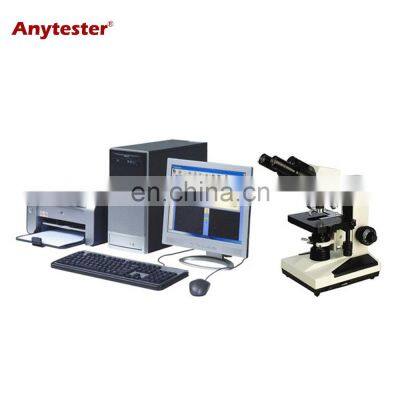

Product DescriptionHY3530 Carbon Black Dispersion Tester is a system to determine the pigment or carbon black dispersion of rubber and rubber compound material. It consists of professional software and microscope.Standard ISO 11345GB/T6030 Features1. Professional image method to measure, high accuracy2. Equipped with professional process program for different products to ensure reliable test result, automatically finish the process from image capture and test result output3. With flexible data analysis and reporting system4. Can provide auto-system, improve the degree of automation5. Can provide different capture device to connect with different computerSpecification MODELHY3530 Carbon Black Dispersion TesterMagnification30times, 100 timesIrradiation angle30°, adjustableDispersion grade1 ~10Sample size5×8mmLight sourceHalogen lamp (LED lamp optional)ControlProfessional programPower supplyAC220V 50HzWeight30kg
