Laboratory Testing Screen Vibrating Screen Sieve Shaker

Product Description

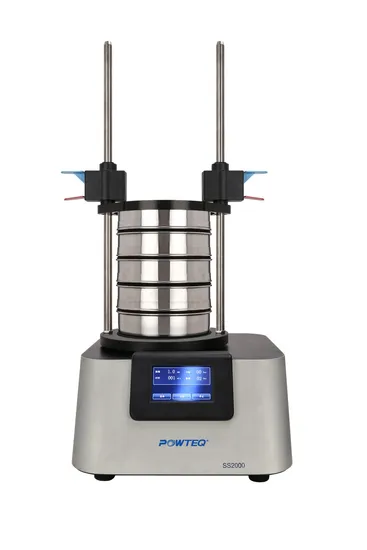

SS2000 is used to batch sieve the solid particle or powder samples. Its electromagnetic drive system guarantees the result is achieved not only in a very short time but also accurate and repeatable. It can perform dry sieving and wet sieving for samples and most parameters can be digital preset. It is maintenance free and operation is very quiet.
Application
SS2000 applies for all the inorganic and organic compounds including the sand, rocks, clay, granite, feldspar, coal, soil, grains, seeds and all kinds of solid particles.
Working Principle
The model SS2000 adopts electromagnetic drive system which generates unique three-dimensional motion to throw samples, that makes the samples distribute evenly on the whole sieve. Intermittent vibration can improve sieving effects and guarantee sieving holes are free from blocking.
Two kinds of clamping device

Sieves and collecting pan

Features and advantages
○ Dry, wet sieving.
○ Low noise, maintenance-free.
○ Intermittent mode can be selected.
○ Unique sieving with 3D motion, high accuracy.
○ Reliable, repeatable and high efficient sieving result.
○ LED 5 inch touch screen, intelligent control, convenient operation.
○ Digital setting, all sieving parameters can be preset, simple operation.
○ It can be connected to the computer and controlled by the screening software to perform data processing and analysis, screening evaluation.

Product Parameters

Measuring range	20μm-25mm
Amplitude adjustment range	0.2-3.0mm
Time setting	01~99min
Interval operation adjustment range	00~99s
Drive /sieving mode	electromagnetic drive
Max. number of fractions	9/17
Sieve diameters	100/150/200/203mm(8'')
Parameter combinations that can be stored	9
Max. feed capacity	3kg
Rated Power	400w
Power supply	220V, 50/60Hz
Instrument size (W*D*H)	400*480*240mm
Package size (W*D*H)	660*660*540mm
Net weight	43kg

*Information on this site is provided for information purposes only and the contents hereof are subject to change without notice.
