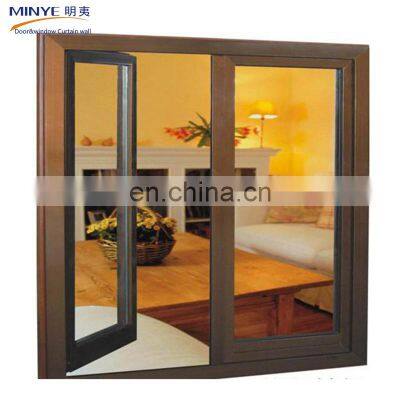

Double glazed tempered glass windows arched window open outside casement window

Product Description

Product Description
Product Description
Detail
Reference

Name	Double glazed tempered glass windows arched window open outside casement window
Standard/Certificate	Comply with CE /AAMA
Glass Standard	Comply with AS2208 &IGCC/IGMA
Extrusion profiles	6063-T5 aluminium alloy/Conch and Rehau PVC profile
Hardware	German/Italy/China
Glass type	1.Double tempered glazing: 5mm+12A(Air)+5mm ;5mm+12A+5mm tinted; 5mm+12A+5mm Low-E; 5mm+27A+5mm 2.Single tempered glazing: 4/5/6/8/10/12/15/19/21mm 3.Laminated glazing: 5mm+0.76+5mm, 5mm+0.38+5mm
Surface Finish For Aluminium	Powder coated meet INTERPON, Electrophoresis Flucarbon,Anodizing Wood garin color
Flyscreen	Stainless steel mesh available Rolling/folding flynet
Perforance parameters	Double glass window and door Sounds insulation: RW ≥ 30 dB Wind pressure resistance: 4500 pa Air permeation resistance: 70/150 Water resistance: 450mm Based on AS2208 &IGCC/IGMA
Guarantee Period	10 Years
Application	Available for housing series; residentials series Commerical series
Subframes	Meet double brick;brick vaneer;concrete Wooden frame;steel structure
Wall Type	Angels; timber reveals; sub-head; sub sills available
Sample lead time	10 days
Delivery Time on mass order	25days for standard color; 38 days for customized color(20GP)

FAQ
FAQ
Q: Are you a Trading Company or a Factory?
MINYE is 100% real factory and has been verified by SGS Group.Here is a VCR for your reference:https://shanghai-my.en.china.cn/company_profile/video_introdution.html
Q: How about your production time?
About have 25-30 working days.It depends on the windows&doors types and profile (like color requires).
Q: What about your MOQ?
For window and door, the minimum order quantity is 30 Square meters.
Q: Do you accept customized design and size?
Yes, sure, windows and doors are highly customized goods. So the size and design are up to you.
Q: What’s your payment term?
T/T, L/C, Trade assurance and PayPal are available.
Q: What is your color available?
MINYE Standard Colors have Black, White, Dark grey, Nature, and Coffee. Other RAL Colors are also available but it will spend more time and money.
Q: What kinds of hardware mostly?
China brand: HOPO, KIN LONG, PAGANI, YEAR, CHUANG
Germany brand: ROTO, SIEGENIA
Italy brand: SAVIO, GIESSE
Q: What is profile available in your factory?
Aluminum (Non-Thermal Break and Thermal Break), PVC(UPVC&VINYL), Aluminum Cladding wood.
Q: Do you provide Sample?
Sure, it is available. But we need charge for sample cost and freight fee.
Our Service
Always at your service
1. Make sure that the doors are factory-installed, installed or otherwise cause defects, damage, inconveniences and manufacturer and warranty within the factory.
2. If warranty products appear damages, they would be charged the cost of materials and labor costs based on the extent of the damage.
3. The special case of damage would be settled by the two sides negotiation.
4. Product manufacturers have a final explanation of their products.
5. Six years warranty on the whole product, 10 years warranty for German brand hardware, 10 years warranty for Austrian brand glazing and 10 years warranty for the U.S.A. silicon with lifelong service.
