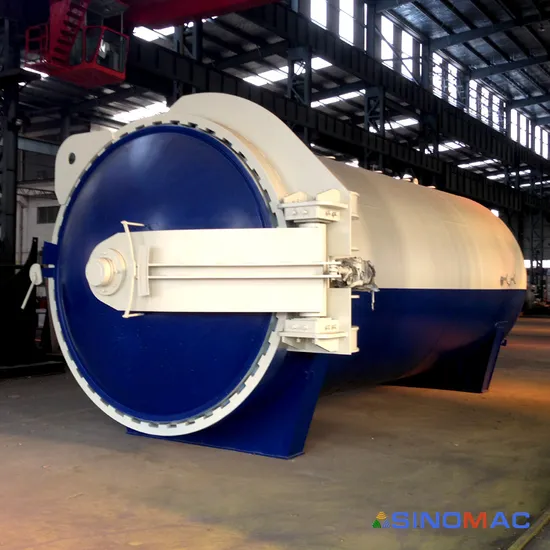

2800X8000mm ASME Certified Rubber Vulcanizating Chamber (SN-LHGR2880)

Product Description

1. Applications of SINOMAC Vulcanization Autoclave
Rubber vulcanization is a chemical process at a given pressure, temperature and time for converting natural rubber into more durable materials by the addition of sulfur. These additives modify the polymer by forming cross-links (bridges) between individual polymer chains. Vulcanized materials are less sticky and have superior mechanical properties. And vulcanization autoclave is used widely for this chemical process. The main products are galoshes, rubber tubes, cable, rubber roller, rubber ball, etc.
2. Leading Position in the Industry
In order to get high-quality rubber rolls, it is very necessary to directly vulcanize the rubber rolls with metal supports inside. This modified treatment is processed in SINOMAC rubber vulcanization autoclave. Inside the autoclave, the pressure, temperature and time can be controlled effectively without the help of moulds. In this field, SINOMAC has been the leader, as we have accumulated full vulcanization experience and technology for many years.
3. Manufacture Standard
SINOMAC Pressure vessel with quick-opening door, can be certified to: CHINESE STANDARD, GB150-2011 AMERICAN STANDARD ASME SEC VIII DIV.1 with ASME Certificate EUROPEAN STANDARD PED 97/23/EC with CE Certificate.
4. The Advantages of SINOMAC TPC Process Control Software
SINOMAC vulcanization autoclave is equipped with advanced TPC control system. This system is developed on base of researching many control systems at home and abroad for many years. It has been very mature and popular. The system has basic functions as below: login permission, sensor options, technology curve setting/calling/saving/printing, automatic/manual performance, real-time data monitoring/record/saving/printing, parts conditions monitoring, alarm, quality analysis, report forms, etc.
5. Types of SINOMAC Vulcanization Autoclave
5.1 Steam Pressurizing and Heating Vulcanization Autoclave
This is a type of direct heating and pressurizing. On the bottom of autoclave, we set up steam diffusion tubes, where steam goes into. On the tubes, there are plenty of small holes (Ø4mm or Ø5mm) densely arranged as a regular array and tilt angle. This design can make the steam flowing inside the tubes evenly spread into space through these close-set holes. So that we can ensure internal uniformity of temperature and pressure. The temperature uniformity can be controlled within +/- 1ºC. The system heating efficiency is high, which is very important to vulcanize those heavy rubber products with big size.
5.2 Electric Heating and Compressed Air Pressurizing Vulcanization Autoclave
This is a main heating type. It is fast, energy conservation and convenient. For the most of rubber products required electric heating, the vulcanization process can be carried out strictly as the preset technology curve. So that user can get products of high quality.
SINOMAC electric heating vulcanization autoclaves use tailor-made stainless tubular heating elements and inlay new thermal conductivity of insulating materials. The heating is fast and working life is long. All the terminals of wires connecting the heating elements are external, which can avoid the built-in wires heat to get a fire. This design improves vastly the heating system safety. By the special circulating fan and reasonable air duct design, the space inside the autoclave can obtain uniform temperature. At the same time, the pressure is controlled individually.
5.3 Steam/Thermal Oil Heating and Compressed Air Pressurizing Vulcanization Autoclave
This type of Vulcanization Autoclaves are normally used for big metal core rubber roller and where is lack of electric power. In order to avoid the difference of thermal conductivity between metal core and rubber, normally we use a slow heating and pressurizing curve. The actual vulcanization time is much longer than the one rubber required normally. In this type of autoclave, the debonding between metal core and rubber roller will not happen.
6. Insulation of SINOMAC Vulcanization Autoclave
Internal Insulation and External Insulation
We use ceramic fiber as the insulation material. The heat transfer coefficient is very low to make the heat loss to a minimum. The covering board of ceramic fiber is stainless steel. It is corrosion resistant and looks nice. Internal insulation design can get a low energy consumption, while external insulation design gets a high one, but a better temperature uniformity.
7. Hot Air Circulating System of SINOMAC Vulcanization Autoclave
We use modified centrifugal impellers, which can generate large air flow and high air pressure. And we adopt a dynamic and mechanical sealing design. The dynamic and static ring sealing material is silicon carbide-graphite.
The design of air duct structure is a U type with flow guiding device, which can ensure the adequacy of hot air circulation. The forced convection rate inside the autoclave can reach more than 90%. By this design, the system can obtain a steady and uniform temperature rising rate.
8. SINOMAC Global Turnkey Projects
With the experience of manufacture and service for 15 years, our professional team are able to offer the global turnkey project, including a professional training. SINOMAC autoclaves can be made as ASEM, PED, AD standards, as well as our Chinese standard.
9. Autoclave Specification

MODEL SN-LHGR2880 VULCANIZATION AUTOCLAVE-TECHNICAL PARAMETER
No.	Description	Unit	Specifications and Parameters
1	Effective Working Diameter	mm	2800
2	Effective Working Length	mm	8000
3	Autoclave Track Distance	mm	950
4	Design Pressure	MPa	1
5	Max. Working Pressure	MPa	0.8
6	Safety Valve Exhaust	MPa	0.85
7	Design Temperature	ºC	180
8	Max. Working Temperature	ºC	160
9	Temperature Uniformity at Steady State	ºC	±2
10	Openning Door Mode	---	Hydraulic
11	Working Medium	---	Compressed Air
12	Heating Mode	---	Electric (Convection+Radiation)
13	Heating Power	KW	252
14	Quantity of Circulating Fan Motor	Set	1
15	Quantity of Circulating Fan Motor	KW	22
16	Thermocouple Type	---	Type K or J
17	Vaccum Lines	Piece	---
18	Quantity of Vaccum Pressure Transducer	Piece	---
19	Standard Control Mode	---	PLC+PC
20	Control Software	---	Thermal Processing Control (TPC)
21	Insulation Type	---	Internal
22	Insulation Material	---	Ceramic Fiber
23	Insulation Thickness	mm	80
24	Insulation Sheet Material	---	Stainless Steel or Aluminized Steel
25	Working Environment Temperature	ºC	Min. -20ºC, ,Max. +45ºC
26	Working Environment Humidity	---	<60%
27	Power Supply	---	220/380VAC, 3P+N+PE, 50/60Hz
28	Weight	KG	22760

10. Professional Workshop
From the SINOMAC Team, with 15 years of experience.
