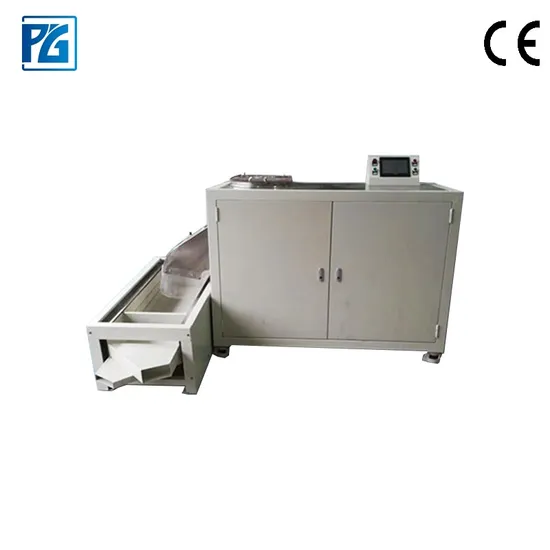

Pg-St-377 Spin Trim Rubber Product Deflashing Machine with Low Running Costs

Product Description

Presenting the state-of-the-art Automatic Spinning Rubber Burr Removing and Spin Trim Deflashing Machine – your ultimate solution for precision and efficiency in the removal of unwanted edges from rubber components.
Product Parameters

Specification	Spin Trim Rubber Deflashing Machine
Model	PG-ST-350
Power Supply	5.5KW 3ph 380V
Size	1890*660*1320mm
Weight	320kg
Gas supply	0.4mpa-0.6mpa
Wheel Speed	0-6000rpm
Process efficiency	about 2kg per min
Batch Time	30-50seconds/ batch
Flashes Separating	Vibrator Separating
Usage	All kinds of O rings or Gaskets
Operation Mode	Touch Screen

Vibrator Specification
Power supply	140W, 3ph 380V
Size:	1350*560*550mm
Weight:	90kg
Vibrator Outlet	Two outlets mouth, one for big flash, another for small flashes
Screen Plate Specification
Size	850*400*Thickness1mm
Function	Filtering flashes by two level screen plate
Mesh hole size	Ф2----Ф55mm

Detailed Overview of the SPIN TRIM RUBBER DEFLASHING MACHINE
Ingenious Design Purpose
Efficiently remove waste edges and flashes from rubber parts automatically, ensuring a cost-effective and streamlined operation.
Comprehensive Operation Principle
Designed with a cutting-edge centrifugal principle, the machine's inner chamber features an automatic high-speed rotating disk. This design facilitates continuous collisions of rubber products, effectively separating edges from the products and achieving superior burr removal.
Versatile Applications
Perfect for processing an extensive array of rubber parts across numerous industrial sectors.
An indispensable tool for the automotive, oil and gas, aerospace, medical, electronics, and general rubber industries.
Outstanding Product Features
1. Equipped with advanced PLC & HMI control, this plug-and-play machine boasts a 7.5-inch touch screen for an intuitive and user-friendly interface.
2. Operates efficiently without freezing or the need for liquid nitrogen. It requires no molds and relies on minimal labor and electricity, significantly reducing manufacturing costs.
3. Delivers exceptionally high output, equivalent to the work of 15~20 employees simultaneously, completing millions of products daily.
4. Perfectly suited for the effective deflashing of small to medium-sized rubber parts, particularly optimal for O rings.
5. Features a divided space for filling and operation, enabling continuous production for maximum efficiency.
6. Incorporates Patented Cutting Technology for Closet Wet Trim, offering a safe, cost-effective, and fully automated process.
7. Includes an Automatic Self-Lubrication System for uninterrupted trimming operations.
8. Powered by a high-speed motor ensuring robust performance and consistent, stable operation.
