Brand New Efficient Intelligent Control Strong Stability Concrete Mixing Plant

Product Description

Product Description
25, 35,50, 60, 75, 90, 120.180cubic meters/hour concrete mixing plant, stationary model which can be customized concrete batching plant
Product Description

Model	NPHZS25	NPHZS35	NPHZS50	NPHZS60	NPHZS90	NPHZS120	NPHZS90
Theoretical productivity	25M3/H	35M3/H	50M3/H	60M3/H	90M3/H	120M3/H	180M3/H
Mixer model	JS500	JS750	JS1000	JS1000	JS1500	JS2000	JS3000
Number of aggregates	2-3	3-4	3-4	3-4	4	4	4
Maximum diameter of aggregates	≤40/50mm	≤40/50mm	≤60/80mm	≤60/80mm	≤60/80mm	≤60/80mm	≤60/80mm
Discharging height	3800mm	3800mm	3800mm	4000mm	4000mm	4000mm	4200mm
Aggregate weighing range	0-1500kg	0-2000kg	0-2000kg	0-2000kg	0-3000kg	0-3000kg	0-4000kg
Weighing accuracy	±2%	±2%	±2%	±2%	±2%	±2%	±2%
Cement weighing range	0-300kg	0-500kg	0-300kg	0-900kg	0-900kg	0-1200kg	0-1800kg
Weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Water weighing accuracy	0-200kg	0-300kg	0-300kg	0-800kg	0-500kg	0-500kg	0-800kg
Weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Admixture weighing range	0-50kg	0-50kg	0-50kg	0-50kg	0-50kg	0-80kg	0-100kg
Weighing accuracy	±6%	±0.6%	±0.5%	±0.6%	±0.5%	±0.5%	±0.5%
Powdered coal weighing range	0-200kg	0-500kg	0-500kg	0-500kg	0-500kg	0-600kg	0-1000kg
Weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%

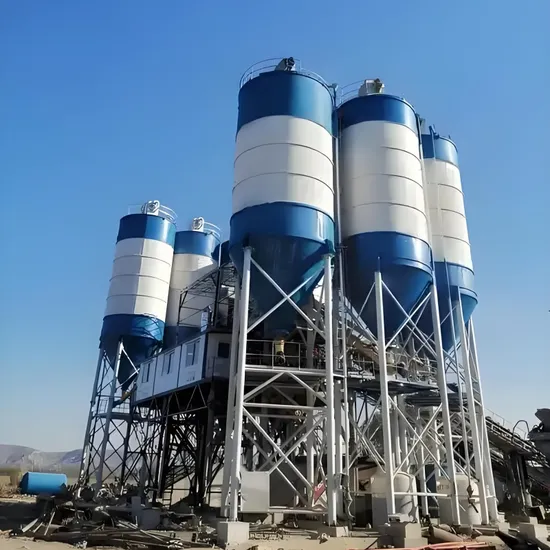

Detailed Photos
Fixed concrete mixers have the following advantages and features:
High production efficiency
• Usually have a large capacity, can mix a large amount of concrete at a time, and its motor power and other configurations are relatively high, the mixing speed is relatively stable, can produce a large amount of concrete with stable quality in a short time, and meet the needs of continuous operation of large-scale construction and other projects.
Good mixing quality
• The internal structure is precisely designed, and the angle, number and layout of the mixing blades are reasonable, so that the materials can be fully and evenly mixed in the mixing drum. Under the precise control system, the accuracy of key parameters such as water-cement ratio can be guaranteed to ensure the stability and reliability of the quality of concrete.
High degree of automation
• It can be equipped with advanced automatic control systems, which can accurately control the mixing time, feed amount and unloading. For example, in large-scale construction projects, the ingredients can be accurately batched according to the preset program to reduce manual operation errors.
Good environmental protection
• Generally equipped with better dust removal devices and wastewater treatment systems to reduce dust and sewage emissions. For example, in urban construction projects with high environmental protection requirements, it can effectively avoid pollution to the surrounding environment.
Strong durability
• Since it is installed in a fixed position, its structure is stable and does not need to be moved frequently, so the service life of the equipment is long. At the same time, it is easy to maintain, and maintenance personnel can more conveniently inspect, repair and maintain the equipment.
Product Parameters
Certifications
FAQ
1.Q:Are you a factory or a trading company?
We are a factory with 30 years of manufacturing experience. All our machines are manufactured according to national and international standards and each device is tested before delivery.At the same time, we are also an international trading company, and can directly assist you in handling export and related formalities
2.Q:How about the price?
We are both a manufacturer and a trading company, but we give you the factory price. We have the lowest price for any customer. When you cooperate with us, you are equivalent to cooperating with a trading company at a factory price. FAQ
