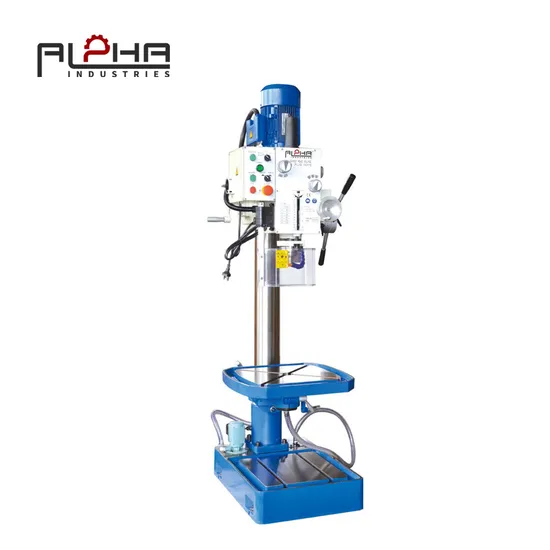

Hot Selling in Europe Heavy Machinery Dm30h Drilling Machine

Product Description

Product Description

Gear driven drilling machine
Exceptionally quite gearbox
Equipped with cross table(WDMP30F)
Zero voltage safeguard
Equipped with tapping system.double speed motor
Equipped with coolant.spindle power feed system
Three steps of spindle power feed
Feeding depth position stop device
High precision ground spindle and larger quill

Product Parameters

Model NO.	Dm30H	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	740x720x1830mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Model No.	Unit	DM30H
Drilling capacity	mm	40
Spindle stroke	mm	120
Spindle taper		MT4
Spindle feed	mm/r	0.1,0.2,0.3
Spindle speed	rpm	75-3200/12
Table dimension	mm	540x470
Base dimension	mm	650x450
Column	mm	Φ115
Motor power	W	850/1100
Packing size	mm	740x720x1830
N.W.	kg	330
Standard Accessories
drill chuck	arbor	drawbar
coolant system	toolbox & tools
Optional Accessories
power feed	coolant system	58pcs clamp kits
100 milling vise	100 drill vise	keyless drill chuck
halogen work lamp

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
