Fully Automatic High Quality Handle Coffee Cup Making Machine

Product Description

MG-ZH PAPER CUP WITH HANDLE MACHINE
Working video links:
https://mingguomachinery.en.made-in-china.com
https://mingguomachinery.en.made-in-china.com
https://mingguomachinery.en.made-in-china.com
https://mingguomachinery.en.made-in-china.com
https://mingguomachinery.en.made-in-china.com

PLANE GRAPH

PRODUCTS

MACHINE INTRODUCTION

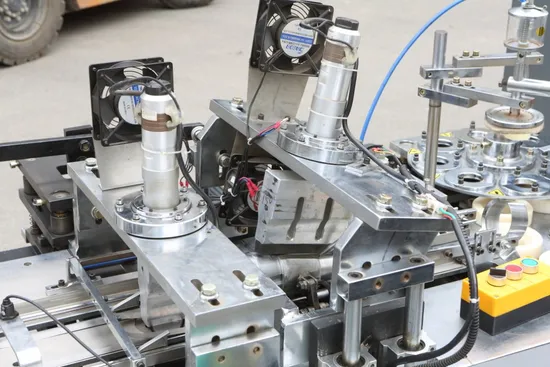

On the basis of multi-station paper cup maker, MG-ZH this kind of cup forming equipment is a kind of improvement and upgrade. Outfitted with a handle applicator, this product completes the handle cutting and sealing automatically. It will save you a lot on time and manpower.

TECHNICAL SPECIFICATION

Model	MG-ZH
Paper cups specifications	2-12oz (50-350ml)(mold exchangeable) T:50-105mm H:50-120mm B:35-80mm
Air supply requirement	Air pressure: 0.4Mpa, Air Out-put: 0.6cbm/minute
Paper specification	140-350 GSM single/double PE coated paper
Production capacity	50-65 pcs/min
Voltage	220V/380V 50Hz
Total Power	6KW
Total Weight	3000KG
Dimensions	2800mm*1200mm*1700mm
Note	Customized service is available

PRICE
Machine cost is 22000USD/SET FOB NINGBO in automatic lubrication system. 1. Whole machine is box type structures design, filling oil by spray lubrication system So that it can run fast and stably.
2. Photoelectric failure-detecting system is available.
3. Servo control to send bottom paper of cup, deliver bottom when cup tube come,
otherwise no bottom delivery.
4. Stretch knife uses for bottom cutting. Easy changed and more stable.

Automatic chain with cam system cost is 16500usd/set FOB ningbo.
Automatic chain with gear box system cost is 15000usd/set FOB ningbo.
AFTER SERVICES
A. One year warranty. (Non-artificial damage of parts we will send to customer, customer
need pay for the transport cost.)

B.First time, when machine delivery, if customer need, then we will send the engineer to
customer country install the machine and adjust the machine for customer( customer
need pay the return tickets cost, hotel cost, visa cost, engineer salary 100usd/one
day(include on the plane days)).

C.The details depend on contract or proforma invoice.

PAYMENT DETAILS
Payment term:30% deposit pay before produce, the left 70% arrange before shipping.
DELIVERY TIME
40-50 working days after got the 30% deposit by TT.
CERTIFICATE
