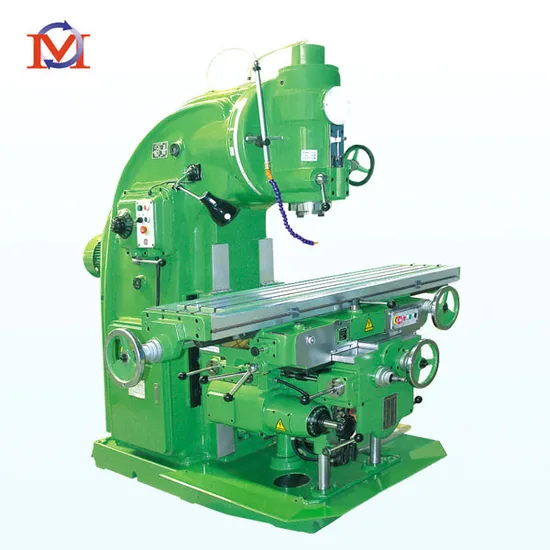

Multi-Function Knee-Type Mill Machine (X5040)
| US$5,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X5040
Type
Knee-and-Column Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
400X1700mm
T-Slots(No./Width/Pitch)
3/18/90
Max. Load
800kg
Spindle Speed Range
30-1500r/Min
Stroke of Spindle Quill
85mm
Distance Between Spindle Nose and Table
115/500mm
Power of Spindle Motor
11kw
Overall Dimensions(Lxwxh)
2556X2159X2258
Net Weight
4250/4350kg
Rapid Feed Speed(X/Y/Z)
2300/1540/770mm/Min
Transport Package
Wooden Case, No Need Fumigation, Plastic Cover
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84595900
Production Capacity
300 Sets/Month
Product Description
Product DescriptionMulti-function Universal milling machine (X5040)
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in milling plane, inclined plane and slot on miscellaneous work pieces of various metals by means of cylindrical or angle milling cutter in either down-milling or up-milling. It is characterized by stabilizing precision, sensitive response, light in weight, power feed and rapid adjustment in longitudinal, cross, vertical traverse.
Vertical milling machine is suitable for milling various metals. It can mill plane, inclined plane, groove, keyway and also can drill and bore with special equipment. The machine introduces ball screw drive and higher spindle speed. Every kind of vertical milling machine can be equipped with digital display.
Standard accessories:
1. ISO50 Milling chuck
2. ISO50 Cutter arbor
3. Inner hexagon spanner
4. Double head wrench
5. Single head spanner
6. Oil gun
7. Drawbar Product Parameters
| Specification | Unit | X5040 |
| Table size | mm | 400X1700 |
| T-slots(NO./Width/Pitch) | 3/18/90 | |
| Longitudinal travel(manual/auto) | mm | 900/880 |
| Cross travel(manual/auto) | mm | 315/300 |
| Vertical travel(manual/auto) | mm | 385/365 |
| Rapid feed speed(X/Y/Z) | mm/min | 2300/1540/770 |
| Max. load | kg | 800 |
| Table feed range(X/Y/Z) | mm/min | 23.5-1180/15-786/8-394 |
| Spindle speed range | r/min | 30-1500 |
| Spindle speed step | steps | 18steps |
| Stroke of spindle quill | mm | 85 |
| Max.swivel angle of vertical milling head | ±45° | |
| Distance between spindle nose and table surface | mm | 115/500 |
| Power of spindle motor | kw | 11 |
| Overall dimensions(L×W×H) | mm | 2556×2159×2258 |
| Net weight | kg | 4250/4350 |
Detailed Photos
