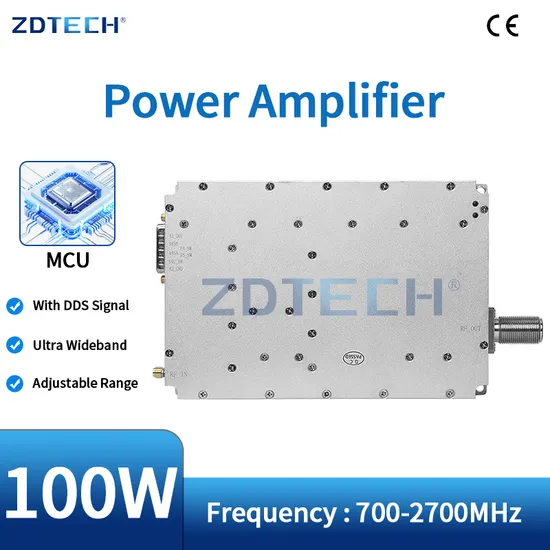

| Test items | Specs | Remark | |
| Frequency | 700-2700MHz | ||
| Operating voltage | 30V | 28-32V | |
| Maximum output power | 50±1dBm | ||
| Operating current | ≤12A | ||
| Controllable output power | 100W | ||
| Gain | 50±1.0dB | ||
| In-band fluctuation | ±2dB | peak | |
| Maximum allowable input power | ≥+10dBm | Duration 1min without damage | |
| Input voltage VSWR | ≤1.50 | Add +28V, standard network output -10dBm | |
| Output voltage VSWR | ≤1.50 | Without power, standard network output -10dBm | |
| ≤1.50 | Power up, dual directional coupler test | ||
| High and low temperature test | Working environment temperature | -10~+55ºC | Low temperature can start, monitoring work normally |
| Gain Stability | ±1.5dB@-10ºC~+55ºC | ||
| Power Stability | ±1.5dB@-10ºC~+55ºC | ||
| Power supply requirement | ≥8A @+30Vdc; | continuous wave output 100W | |
Power supply, control interface 7W2 | A1:VCC+28V; A2:GND 1: TEMP_AL: Temperature detection AD Voltage value 2: RUN: Forward power detection AD Voltage value 3: VSWR_AL: standing wave alarm, high level alarm, low level cancellation. 4: PA_EN : enable switch; high level 3V~5V on, low level <2V off. 5: PA_ADJ: Power regulation input 0~5V voltage, 0V attenuation max, 5V no attenuation | ||
| RF output connector | N-F | ||
| Module Dimension | 162*92*25mm | ||
| Module protection | Temperature compensation, over-temperature protection, standing wave protection | ||
| LED module indicators | POWER: power indicator, RUN: power operation indication, VSWR: standing wave warning indication | ||
