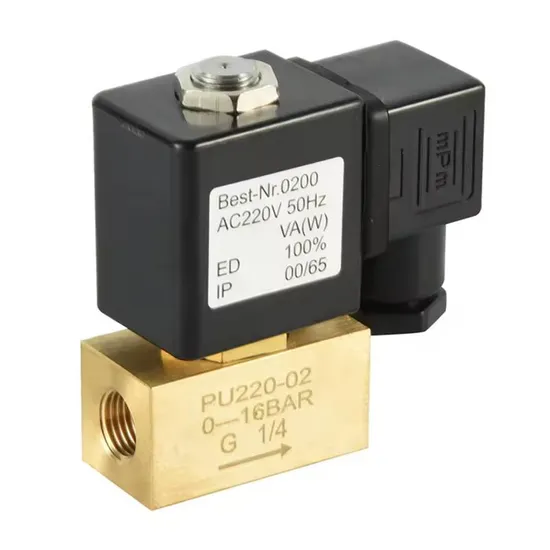

1/4′′ PU220-02 2/2 Way Brass Water Valvula Solenoide Direct Acting Solenoid Valve 110VAC 220VAC 24VDC
| US$23.31 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
PU220-02
Actuator
Electric
Connection Form
Thread
Type
Direct Acting
Material
Brass
Pressure
Ordinary Pressure
Valve Structure
Pilot Piston Structure
Power Supply
AC/DC
Usage
Safety, Emptying, Drain, Temperature Control, Flow Control
Application
Industrial Usage, Water Industrial Usage, Household Usage
Structure
Control
Customized Support
OEM, ODM, Obm
Port Size
1/4′′
Orifice Size
25mm
Warranty
1 Years
Voltage
DC12V, 24V AC110V, 220V
Thread
NPT BSPT PT BSPP
PU220 Series Model No
PU220-01, PU220-02, PU220-03, PU220-04, PU220-06,
Transport Package
1. Logo Standard Cartons 2.White Carton Box Withou
Trademark
Jery
Origin
China
Production Capacity
50000 Piece/Pieces Per Month
Product Description
Jery is a Solenoid Valve manufacturer and exporter in Ningbo, China, Fenghua,which has more than 10 years experience. We offer a wide selection to meet your application requirements for pressure range, temperature range, orifice size, connection style, and voltage. In addition, there is also a wide variety of housing and seal material selection.According to different valve body materials, solenoid valve is divided into:
1.Brass Solenoid Valve2.Stainless Steel Solenoid Valve3.Plastic Solenoid Valve
According to different structure design, solenoid valve is divided into:
1.Direct Acting Solenoid Valve2. Semi-Direct Acting Solenoid Valve
3. Pilot Operated Diaphragm Solenoid Valve
4. Pilot Operated Piston Solenoid Valve Direct acting for fast on / off Durable stainless Armature Ex-proof coil are avaiable Good for low pressure operation Compact and good appearance. Directacting,diaphragm structure,can work at zero pressure. Coil made from H class wire,thermosetting plastic encapsulatin,reach IP65 protection class with plug
Technical Data
| PU220 Series | PU220-01 | PU220-02 | PU220-03 | PU220-03 | PU220-04 | PU220-06 | PU220-08 |
| Orifice Size | 1.5mm | 2.3mm | 8.0mm | 13.0mm | 13.0mm | 20.0mm | 25.0mm |
| Port Size | 1/8'' | 1/4'' | 3/8'' | 3/8'' | 1/2'' | 3/4'' | 1'' |
| Medium | Water, Oil, Compressed Air | ||||||
| Action | Direct Lifting Diaphragm | ||||||
| NC/NO | 2 Way, Normally Closed / Normally Open | ||||||
| Body Material | Brass | ||||||
| Seal Material | NBR, EPDM, FKM, Si | ||||||
| PressureRange (bar) | AC: 0-8.5, DC: 0-7.0 | AC: 0-10.0,DC: 0-7.0 | AC: 0-8.5,DC: 0-7.0 | AC: 0-8.5,DC: 0-6.0 | AC: 0-7.0,DC: 0-5.0 | ||
| Temp. Range | -5 to +80ºC (NBR), -5 to +150ºC (EPDM, FKM) | ||||||
| Power | 22VA | ||||||
| PU220 Series | A | B | C | R |
| PU220-03 | 66.5 | 101 | 48 | 3/8'' |
| PU220-04 | 66.5 | 101 | 48 | 1/2'' |
| PU220-06 | 71 | 107 | 58 | 3/4'' |
| PU220-08 | 96 | 120.5 | 70 | 1'' |
