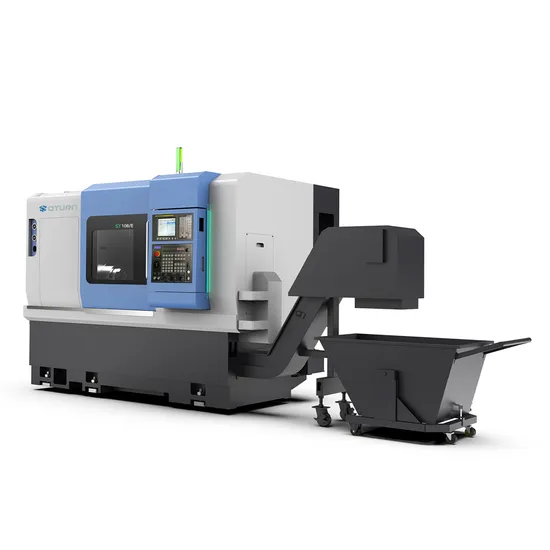

High Precision Swiss Type Oturncnc Esy108 Slant Bed Lathe

Product Description

Product Description
The two-axis lathe can process both ends of the workpiece at the same time in one clamping, which greatly simplifies manual operations, increases output and reduces processes. The second spindle enables full turning and expressly transfers workpieces during machining, thereby reducing cycle times. The machine adopts an optimized 30-degree inclined structure design, which also has high precision, super rigidity and excellent cutting stability. The strong structural lathe bed is made of one-piece high-strength HT300 cast iron and uses finite element analysis. The overall mechanical rigidity and stability are excellent, and it can maintain long-term reliable accuracy, improve processing stability and tool life, and stress relief treatment improves accuracy stability. The high-strength roller linear rail design structure, the transmission system adopts screw pre-tension design to improve the rigidity performance, and the simple and elegant appearance is in line with the trend of the trend. Main features of this machine tool: 1. Adopt direct drive synchronous electric spindle device: magnetic ring incremental encoder (sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. Effectively eliminate spindle vibration, and the nose deflection accuracy is within 0.002MM. Improve the surface finish of the workpiece, adopt a rear-mounted rotor, which makes installation and maintenance faster, the spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant operating temperature of the spindle. The spindle system has undergone strict dynamic balance testing. The good accuracy retention, high rigidity and high efficiency enable the whole machine to not only complete finishing, but also perform rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high smoothness. product. 2. High rigidity integrated design servo power turret. It helps the servo turret's rapid and accurate tool changing performance, and when coupled with the power milling of a high-speed power axis, it achieves excellent turning and milling combined processing capabilities. The tool holder is installed using a high-rigidity BMT installation interface, and the power transmission shaft is driven by a servo spindle motor. 3. The machine tool is equipped with roller linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method, which can make the heat The amount of displacement is minimized, greatly improving processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life. 4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. 5. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various functions can be designed and installed according to the special requirements of the user. A special fixture. Product Parameters

Mechanical specifications	Name	Unit	SY108/E
Travel	The largest diameter rotating bed	mm	Φ600
	Max. processing diameter	mm	Φ400
	Max.Swing Over Cross Slide	mm	Φ220
	Max. processing length	mm	360
	Distance Between Centers	mm	320
Spindle Oil cylinder chuck parameter	Spindle nose	type	A2-6
	Max. speed of spindle	rpm	4500
	Cylinder/Chuck	lnch	8″
	Spindle bore	mm	Φ65
	Bar diameter	mm	Φ52
	Spindle motor power	kw	11/15KW
X/Z axis feed parameter	X axis travel	mm	200
	X/Z axis rail specification	spes	35/35pin roller
	Z axis travel	mm	350
	X/Z axis motor power	kw	1.8KW
	X/Z axis moving fast	m/min	30/30
	X/Z axis positioning accuracy	mm	±0.005
	X/Z axis repeat positioning accuracy	mm	±0.003
Servo Cutter parameters	Opposite side of cutter head/Tool position	mm/pcs	360/10/12T
	Square tool holder specifications	mm	25X25
	Circular cutter holder specification	mm	Φ40
	The adjacent tool change time	sec	0.15
	Positioning accuracy	/	±2"
	Repeat positioning accuracy	/	±1"
Tailstock parameters	Programmable hydraulic tail seat	/	Protocol
	The biggest stroke of the tail	mm	360
	Tailstock sleeve tapered hole	type	Mohs 5#
	Tailstock sleeve diameter	mm	100
	Sleeve stroke	mm	100
Mechanical Size	Machine size	mm	2300x1800x1700
	Machine Weight	kg	3700kg
	Cutting fluid tank volume	L	89L
	Cutting water pump	kw	0.75kw
