US$8,000.00-26,000.00
|
1 Set
(MOQ)
|
Basic Info.
Cutter Material
High-Speed Steel
Weight(Excepting Motor)
15t
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
250-300MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
Installation and Technical
Transport Package
Standard Packing
Specification
1900*2600*1830
Production Capacity
500sets/Year
Product Description
Overview of CrushersCrushers are machines designed to break down large chunks of material into smaller pieces or powder, playing a vital role in industries such as mining, construction, chemical, and metallurgy. They apply mechanical forces to the material to exceed its strength limit, causing it to break apart.
Working Principle:The working principle of a crusher typically involves applying pressure to the material, causing internal stresses to exceed the material's strength, thus achieving the breakdown of the material. Depending on the method of applying pressure and the crushing effect, crushers can be categorized into different types.
Application Fields:Crushers are widely used in mining, quarries, building material production, chemical raw material preparation, metallurgy, and other fields for crushing various hardness materials such as ores, rocks, coal, limestone, gypsum, etc.
Types:There are several types of crushers, including:
Jaw Crusher: Breaks material by the relative motion between the moving jaw and the fixed jaw.Cone Crusher: Breaks material by the rotation of a cone-shaped spindle, causing compression and bending within the crushing chamber.Hammer Crusher: Breaks material by the impact of high-speed rotating hammers.Roll Crusher: Breaks material by the compression between two counter-rotating rollers.Impact Crusher: Breaks material by the impact of a high-speed rotor and fixed impact plates.Ball Mill: Although typically used for grinding, it can also be used for crushing in some cases.
Advantages:High Efficiency: Capable of quickly breaking down large chunks of material.Strong Adaptability: Can handle materials of different hardness and sizes.Compact Structure: Takes up little space, making it easy to install and move.Easy Maintenance: Parts are easy to replace, and maintenance costs are low.High Automation: Can be automated, reducing manual operation.Precautions:Choose the appropriate type and size of the crusher to suit different material characteristics and production needs.Regularly inspect the wear of the crusher and replace worn parts in a timely manner.Ensure the crusher is securely installed to prevent performance issues due to vibration.Follow safety operation procedures to ensure the safety of operators.With technological advancements, the design and manufacturing technology of crushers continues to improve, meeting the growing demands of industrial production. New types of crushers have made significant progress in increasing crushing efficiency, reducing energy consumption, and minimizing environmental pollution.
Technical Data Sheet of PE Compound Pendulum Jaw Crusher
Standard Model | (mm) Entrance Size | (mm) Max Size Of Loading | (t/h) Output | (r/min) Speed Of Spindie | (mm) Regulating Limits Of Exit | Cooperate Motor | (mm) Dimension (LxW×H | (t) Weight (Excepting Motor) |
Length | Width | Model | (kKW) Power |
PE150×250 | 250 | 150 | 125 | 1~3 | 303 | 10~40 | Y132S-4 | 5.5 | 900×750×950 | 1.1 |
PE250×400 | 400 | 250 | 200 | 5~20 | 300 | 20~60 | Y180L-6 | 15 | 1450×1280×1300 | 2.5 |
PE400×600 | 600 | 400 | 350 | 14~36 | 250 | 40~100 | Y225M-6 | 30 | 1700×1700×1650 | 5.8 |
PE 500×750 | 750 | 500 | 400 | 30~80 | 250 | 50~120 | Y280S-6 | 45 | 2000×1950×1900 | 9 |
PE 600×900 | 900 | 600 | 425 | 45~95 | 250 | 60~130 | Y280M-6 | 55 | 2400×2230×2400 | 12.5 |
PE 750×1060 | 1060 | 750 | 630 | 120~300 | 250 | 80~235 | Y315M-6 | 90 | 2500×2370×2780 | 26 |
PE 900×1200 | 1200 | 900 | 750 | 280~500 | 225 | 95~265 | Y315L1-6 | 110 | 3200×2820×3260 | 45 |
PE1100×1400 | 1400 | 1100 | 900 | 350~750 | 200 | 120~260 | Y315L2-6 | 132 | 3850×3050×4000 | 75 |
PE1200×1500 | 1500 | 1200 | 1020 | 700~950 | 200 | 150~300 | Y2-355M1-6 | 160 | 4050×3150×4200 | 90 |
PE1500×1800 | 1800 | 1500 | 1200 | 800~1200 | 190 | 220~550 | Y2-355L1-6 | 220 | 5100×4700×4300 | 122 |
PE1600×2100 | 2100 | 1600 | 1250 | 1000~1400 | 180 | 280~650 | Y2-4003-6 | 355 | 5600×5020×4950 | 169 |
PEX150×750 | 750 | 150 | 120 | 8~35 | 320 | 10~40 | Y160L-4 | 15 | 1320×1570×1050 | 2.6 |
PEX250×750 | 750 | 250 | 210 | 15~45 | 330 | 15~50 | Y225M-6 | 30 | 1480×1710×1470 | 5 |
PFX250×1000 | 1000 | 250 | 210 | 15~50 | 330 | 20~50 | Y225M-6 | 30 | 1530×1920×1380 | 6.5 |
PEX250×1200 | 1200 | 250 | 210 | 40~120 | 320 | 20~60 | Y280S-6 | 45 | 1870×2150×1460 | 8.5 |
PEX300×1300 | 1300 | 300 | 250 | 60~180 | 330 | 20~80 | Y280M-6 | 55 | 1870×2400×1730 | 11 |
PEX350×1500 | 1500 | 350 | 300 | 80~220 | 300 | 20~80 | Y315S-6 | 75 | 1900×2660×1830 | 15 |

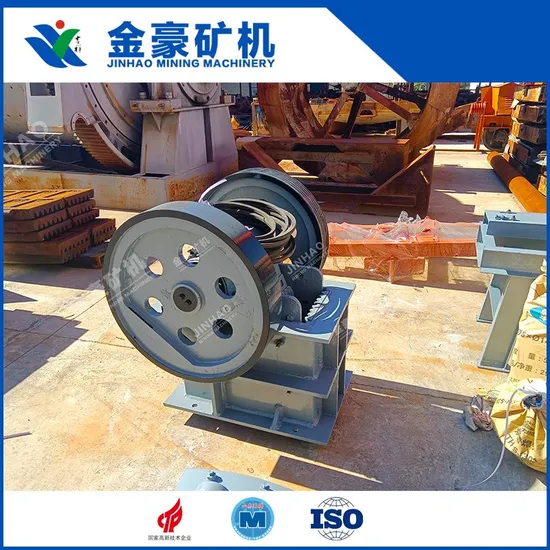

PE compound pendulun jaw crusher belongs to traditional crushing equipment with a long history.It's motor drives the eccentric shaft to rotate via V-belt pulley,and movable jaw to carry out periodical complex swing to generate crushing force.There are two types:coarse crusher and fine crusher. It shows the features like simple structure,low price,reliable operation and convenient adjustment of discharging mouth.lt is very suitable for crushing the damp ore and the ore with much clay.We have made the following optimized desing for the models such as PE400-600,PE250-750,PE600-900,which have been recognized after practical application.
1. Deep cavity design,large size reduction ratio,high crushing efficiency and fine granularity.
2. Improve the speed of eccentric shaft and achieve high production capacity.
Product photos
Company Profile
Yantai Jinhao Mining Machinery Co., Ltd. is located in Zhaoyuan City, the beautiful Gold Capital in China.The company's principal activities are to manufacture machines for nonferrous metals and non-metallic ore-dressing and smelting process. The company covers an area of 45, 000 square meters with 18, 000 square meters of modern manufacturing workshop and more than 30 large-scale processing equipments. The company has excellent professional and technical staff, strong technical force, complete processing equipment and perfect detection means. Not only provide customers high-quality production equipment, but also provide customers full range services of ore dressing, smelting, production line design, installation debugging, technical guidance, personnel training with a complete and comprehensive program.
"People-oriented and developing industry through science and technology" is the company's business philosophy. In recent years, the company has developed and improved the ore-dressing equipment combining the different needs of users and the improvement has been approved by customers. The products are welcomed by the customers for their reliable quality, superior performance and good services. The company is awarded the titles of "Enterprise of Abiding by Strictly Contract and Being Trust Worthy" by Yantai Administration for industry and Commerce and "Consumer Satisfaction Unit". With spirit of "Striving for Survival with Top Quality and Promoting Development with Good Reputation", the company takes the lead in passing the ISO9001-2015 international quality management system in the same industry.
It guarantees the quality and the non-conforming products are not permitted to be sold. The company occupies the market both at home and abroad rapidly because of the high quality and reliable performance of the products. The products have been exported to Vietnam, Korea, Indonesia and other countries in Africa, Asia, South America. Jinhao Mining machine have built branch office in Zimbabwe and Tanzania. The company carries out regular management and product diversification, and it is unique in the industry.
